System Inspection

■ Visual check

1. Check Camshaft and crankshaft alignment.

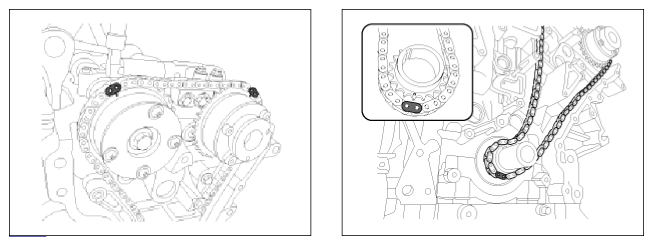

   Fig 1: Checking Timing Position Of Camshafts And Crankshaft (Bank 1)

   Courtesy of KIA MOTORS AMERICA, INC.

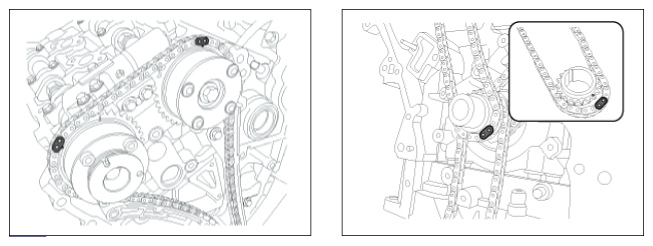

   Fig 2: Checking Timing Position Of Camshafts And Crankshaft (Bank 2)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Have any problems been found?

   YES

   • Repair as necessary and go to "Verification Of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, replace the PCM and go to "Verification Of Vehicle Repair " procedure.
