Audio/Video/Navigation (AVN) System
›
AVN Keyboard
›
Components And Components Location
›
Components
Components And Components Location: Components

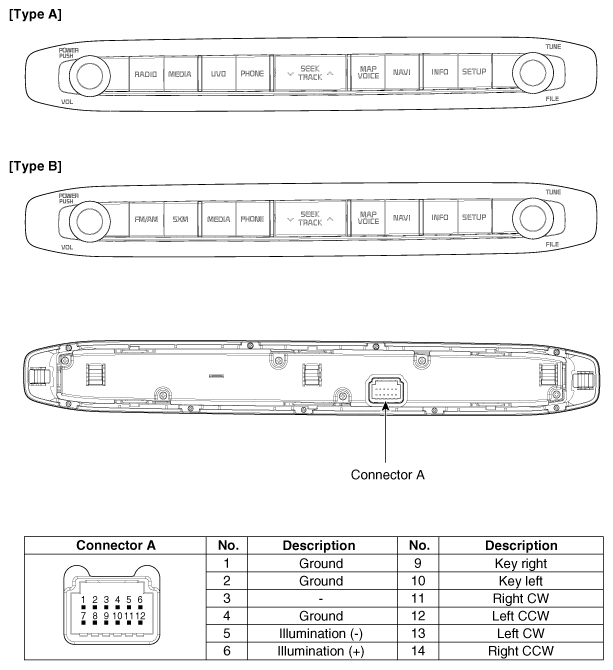

Fig 1: AVN Keyboard Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
