Smart Cruise Control System
›
Smart Cruise Control Switch
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

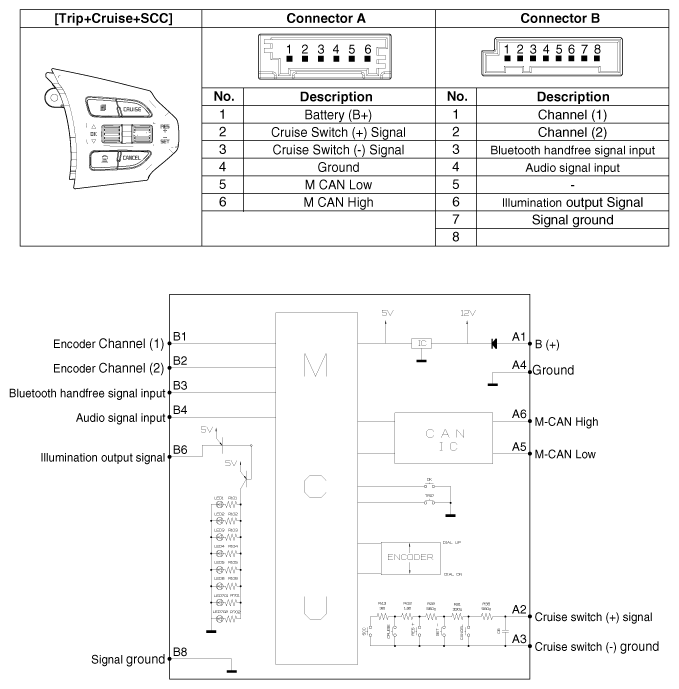

Fig 1: Smart Cruise Control Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
