Components And Components Location: Components

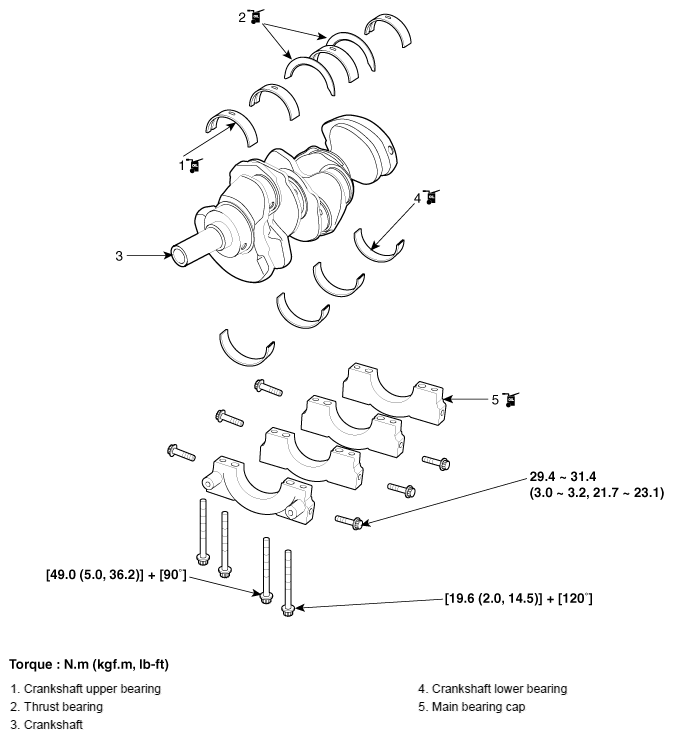

Fig 1: Exploded View Of Crankshaft
G10648275Courtesy of KIA MOTORS AMERICA, INC.
