Heated Oxygen Sensor (HO2S)
›
Troubleshooting
›
Wave Form
Wave Form

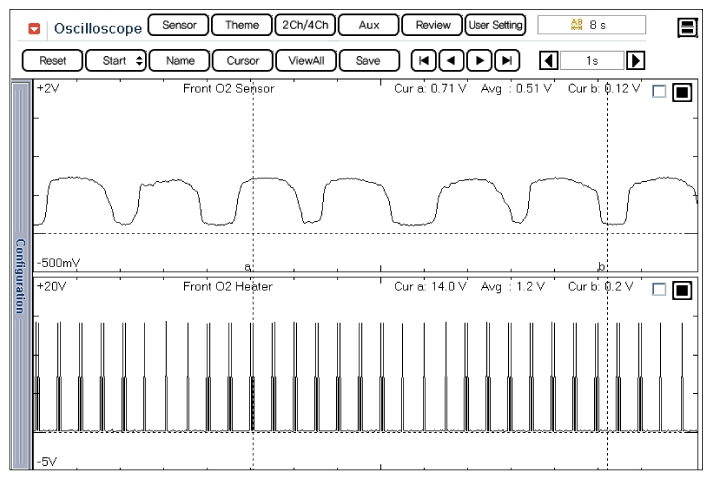

Fig 1: Display - Front Oxygen Sensor Troubleshooting Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Display - Rear Oxygen Heater Troubleshooting Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
