FixVault
Home
›
Kia
›
2015
›
Sedona L
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System
›
Shift Lever
›
Components And Components Location
›
Components
Components And Components Location: Components

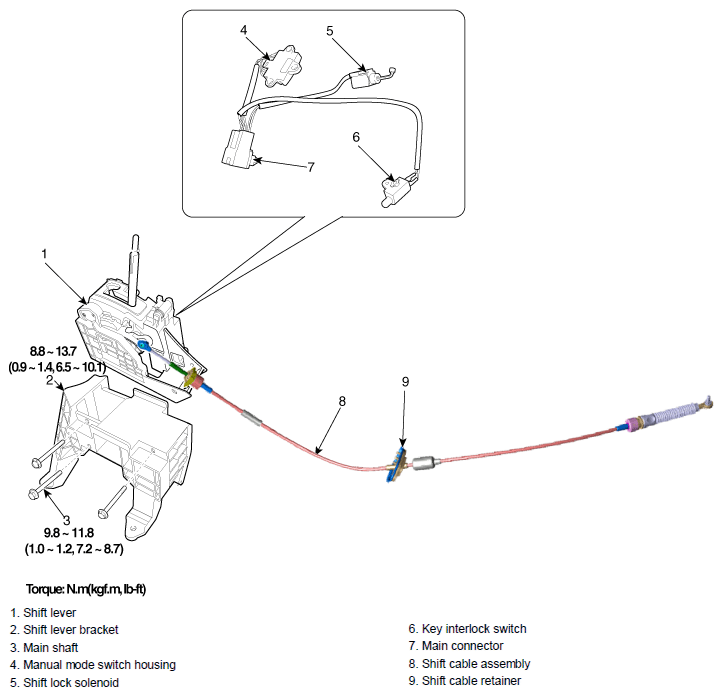

Fig 1: Shift Lever Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
