Kia
›
2015
›
Sedona SXL
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Camshaft Position Sensor (CMPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

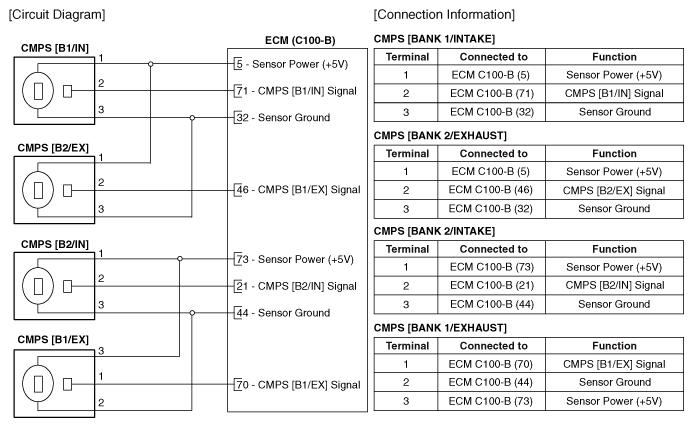

Fig 1: CMPS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
