Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear left luggage side trim.

    (Refer to "INTERIOR TRIM ")

  3. Remove the power tailgate unit (A) connectors after loosening mounting nuts (2EA).

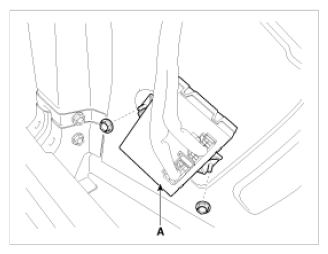

    Fig 1: Power Tailgate Unit Connectors
    G09767201Courtesy of KIA MOTORS AMERICA, INC.
