Power Tailgate Module
›
Components And Components Location
›
Block Diagram
Block Diagram

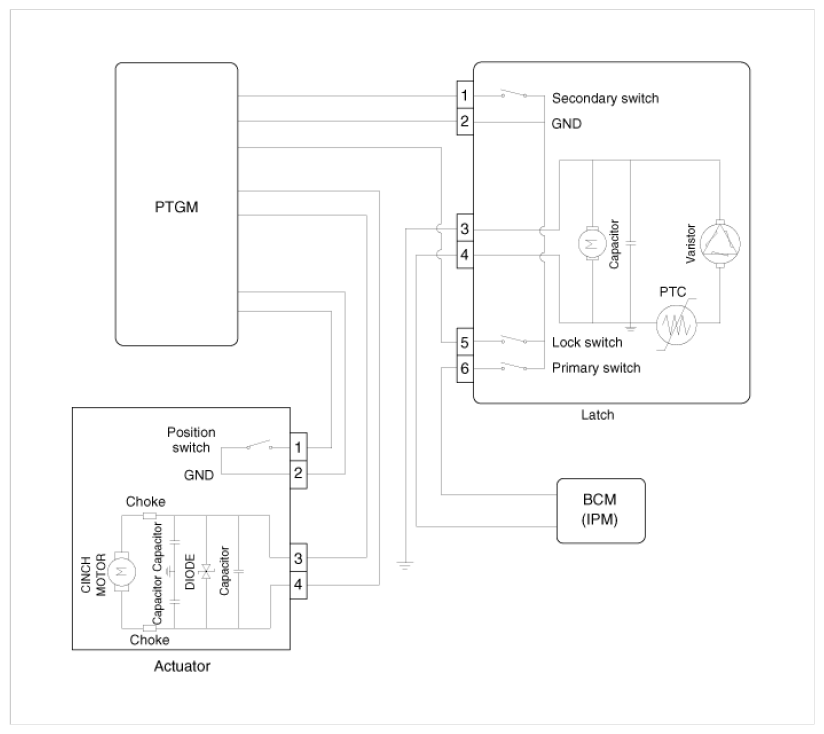

Fig 1: Power Tailgate Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.

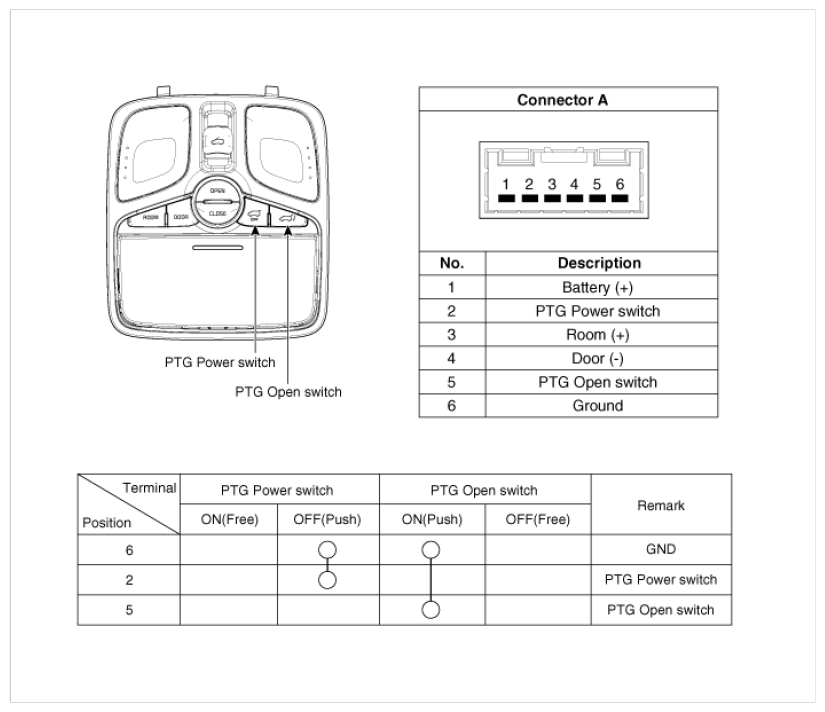

Fig 2: PTG Power Switch And PTG Open Switch On Console
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
