Home › Kia › 2015 › Sorento EX, FWD › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 3.3L › Battery Sensor › Repair Procedures › Removal

Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolts (B).

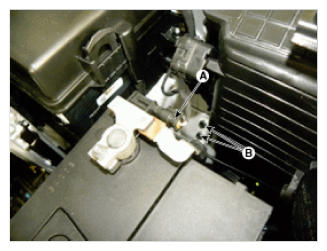

    Fig 1: Battery Sensor Connector And Bolts
    G09765162Courtesy of KIA MOTORS AMERICA, INC.
