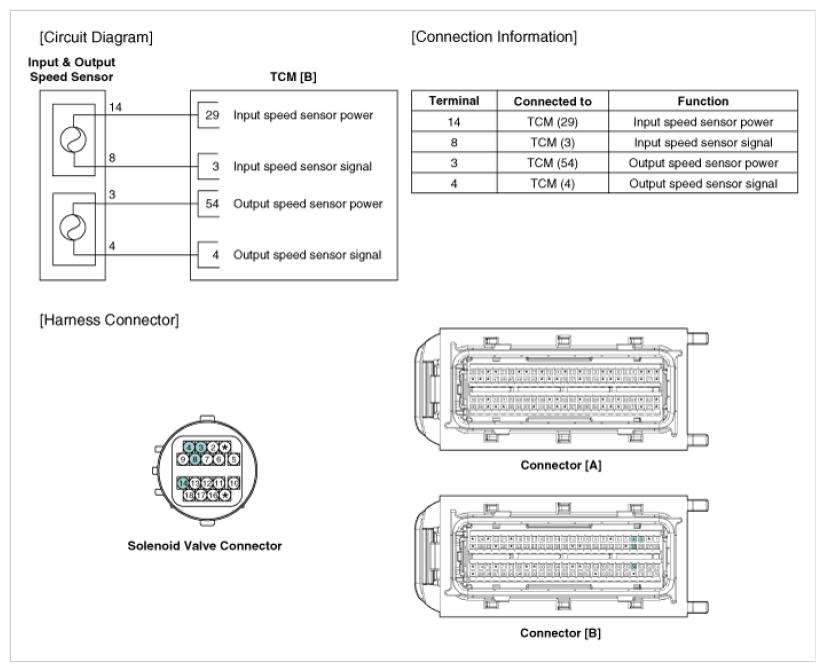

Home › Kia › 2015 › Sorento EX, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - A6LF2 › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
