Automatic Transaxle Control System - A6LF2
›
Output Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

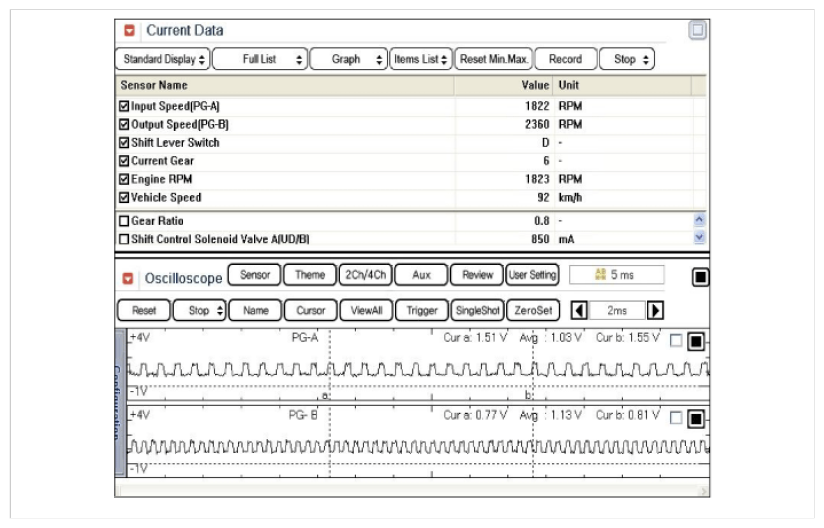

Fig 1: Display - Output Speed Sensor Signal Waveform Screen (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

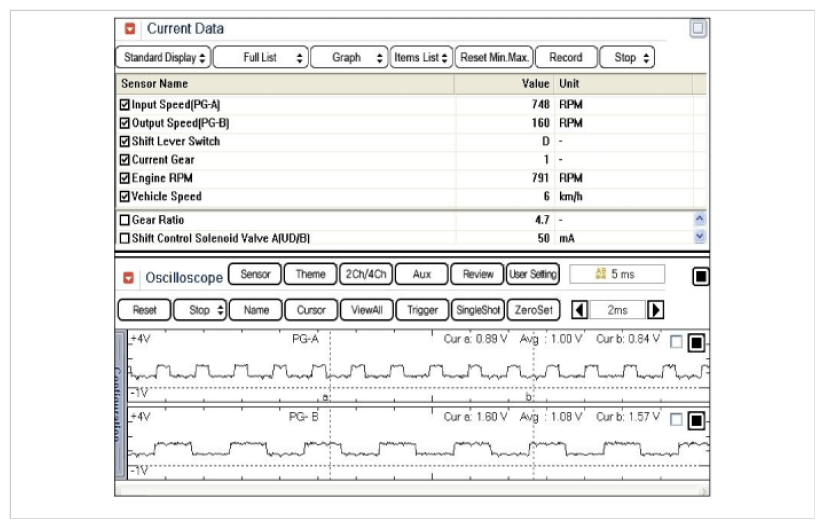

Fig 2: Display - Output Speed Sensor Signal Waveform Screen (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
