Interior 2 Antenna

Disconnect the negative (-) battery terminal.
Remove the floor console rear cover (A).
(Refer to "CONSOLE ")

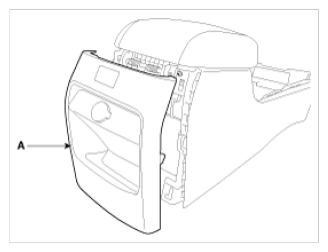

Fig 1: Floor Console Rear Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the antenna nuts (2EA) and connector, remove the interior 2 antenna (A).

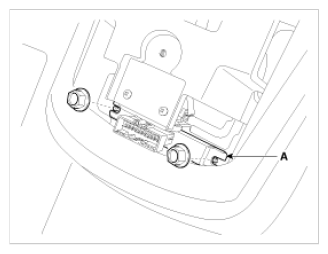

Fig 2: Interior 2 Antenna
Courtesy of KIA MOTORS AMERICA, INC.
