Power Tailgate Unit
›
Schematic Diagram
›
Block Diagram
Block Diagram

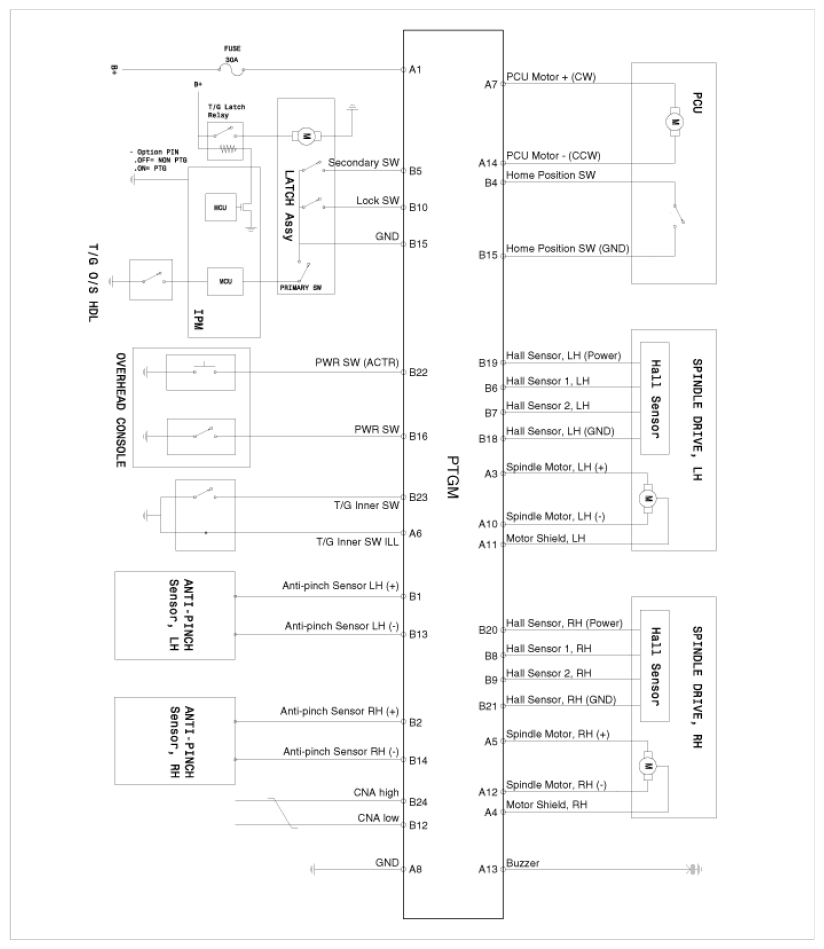

Fig 1: Block Diagram Of Body Electrical System
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
