Smart Key Code Saving Diagnosis
›
DTC P1676: Immobilizer-Smartra Message Error
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

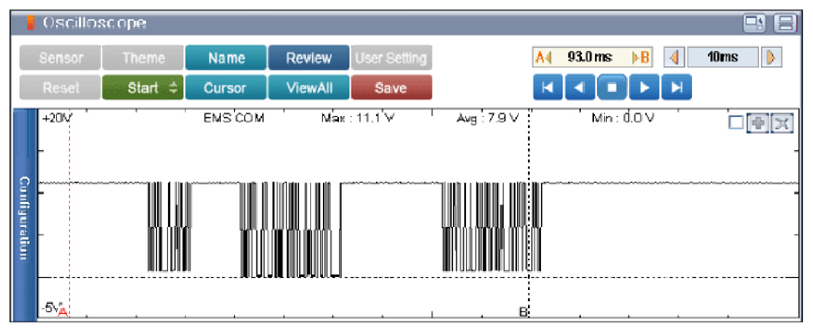

Fig 1: Communication Signal Waveform Between SMK Unit And ECM/PCM
Courtesy of KIA MOTORS AMERICA, INC.
