Description And Operation: Operation: [ISG]

Two separate differential channels for speed and direction information respectively.

Phase separation of the 2 channels delivers information on rotation direction.

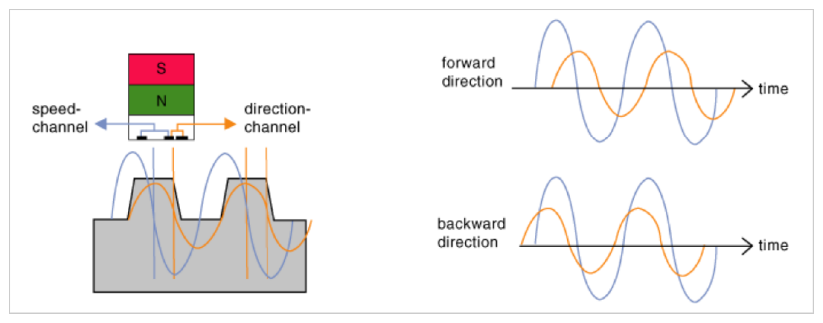

Fig 1: Crankshaft Position Sensor Speed And Direction Signals (ISG)

Courtesy of KIA MOTORS AMERICA, INC.
