Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the mounting bolt.

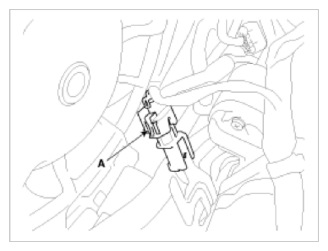

    Fig 1: Identifying Crankshaft Position Sensor Connector
    G09779261Courtesy of KIA MOTORS AMERICA, INC.

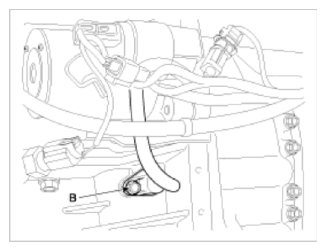

    Fig 2: Identifying Crankshaft Position Sensor
    G09779262Courtesy of KIA MOTORS AMERICA, INC.
