Components And Components Location: Components

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

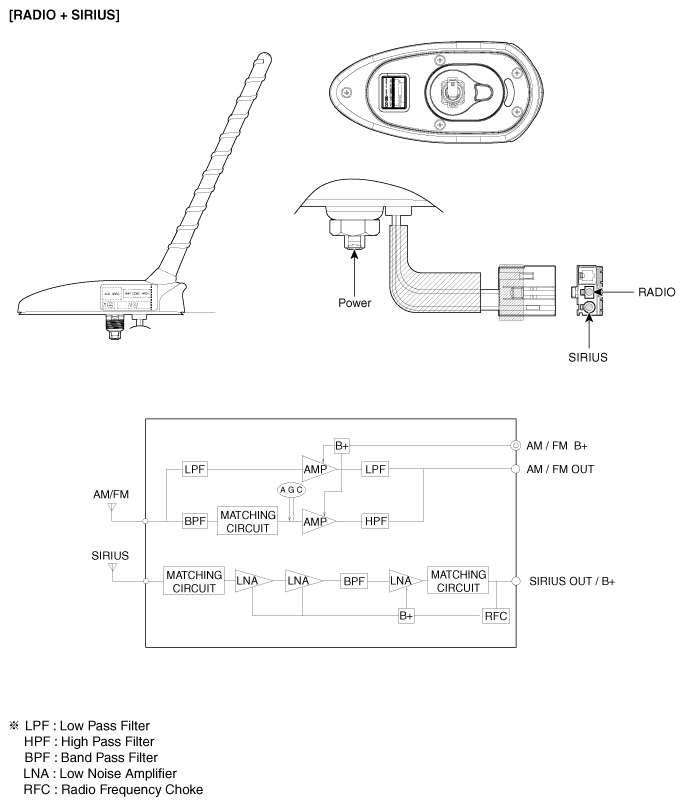

Fig 1: Antenna Component Location (Radio + Sirius)

Courtesy of KIA MOTORS AMERICA, INC.

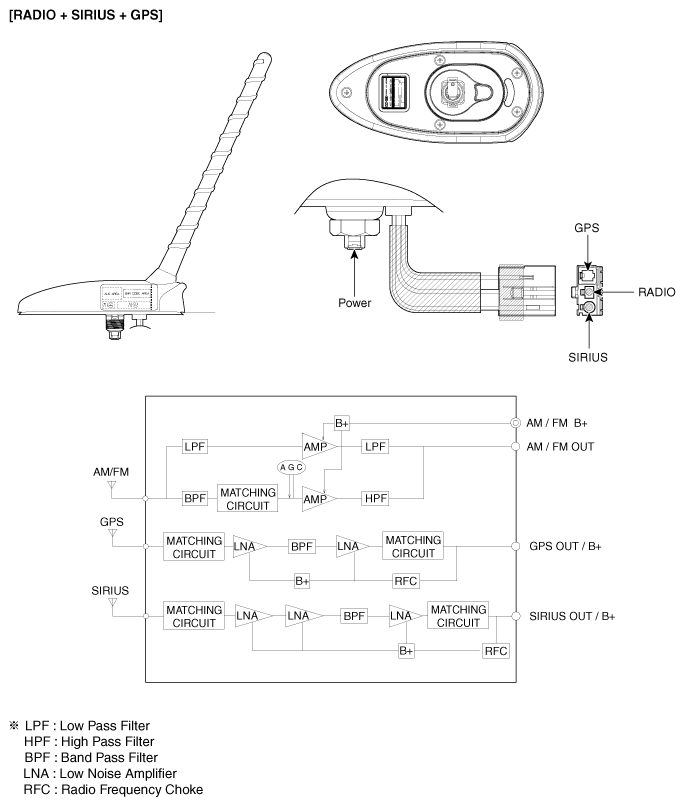

Fig 2: Antenna Component Location (Radio + GPS + Sirius)

Courtesy of KIA MOTORS AMERICA, INC.
