Automatic Transaxle Control System - 2.0L
›
Components and Components Location
›
Components Location
Components Location

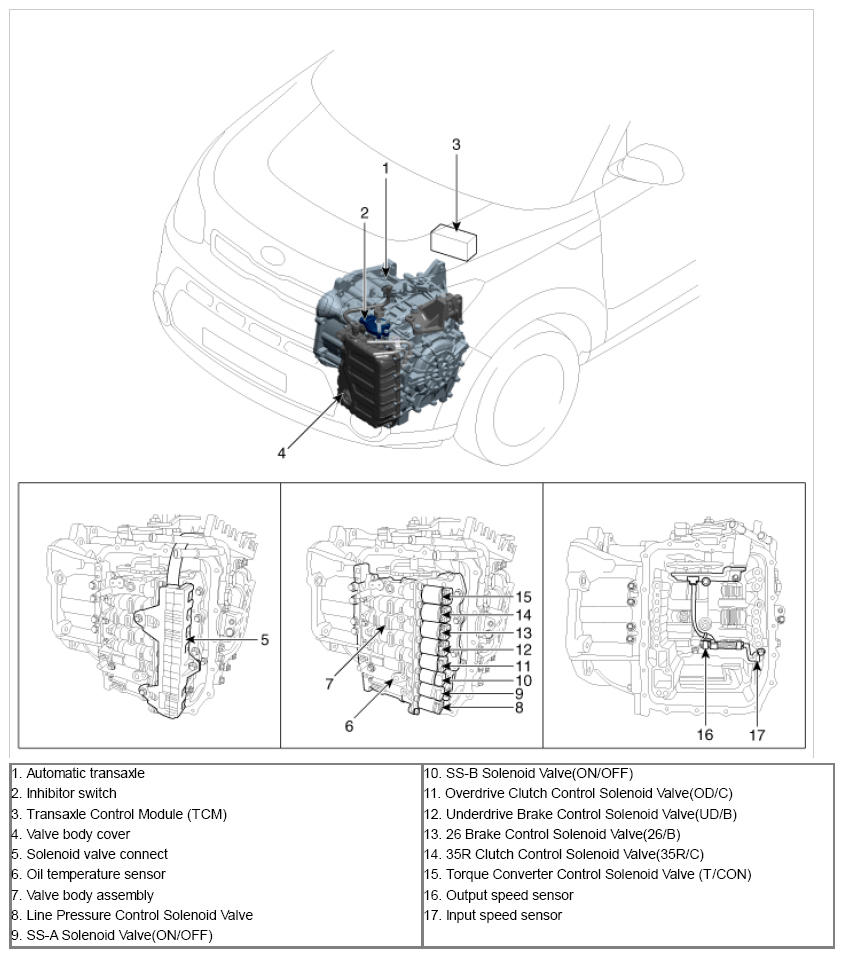

Fig 1: Automatic Transaxle Control System Components Location
Courtesy of KIA MOTORS AMERICA, INC.

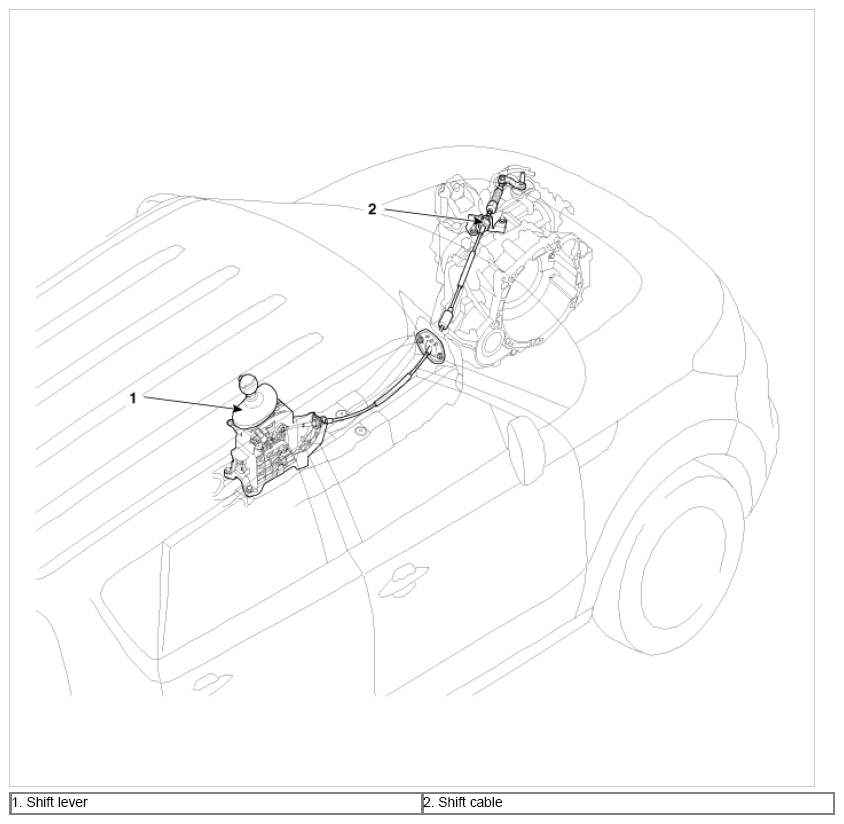

Fig 2: Shift Lever & Cable Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
