OEM Connector End Views (Main Harness) - 1.6L
›
Connector End Views
›
Smart Key Control Module Connector End View (M32-C)
Smart Key Control Module Connector End View (M32-C)

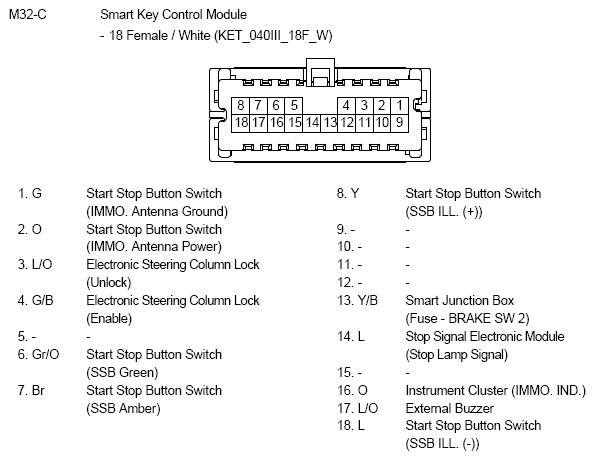

Fig 1: Smart Key Control Module Connector End View (M32-C)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
