[Upper Steering Wheel Remote Control Switch]

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING )
Remove the steering wheel.
(Refer to the "STEERING COLUMN & SHAFT ")

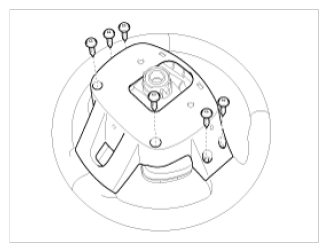

Loosen the mounting screws from the rear steering wheel cover.

Fig 1: Identifying Upper Steering Wheel Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
Separate the upper steering wheel remote control switch (A) from the steering wheel.
[LH]

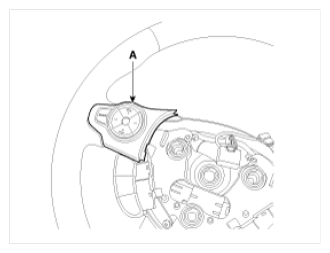

Fig 2: Identifying Upper Steering Wheel Remote Control Switch (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

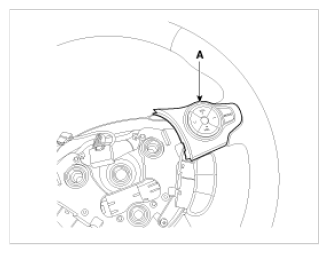

Fig 3: Identifying Upper Steering Wheel Remote Control Switch (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the upper steering wheel control switch (B) disconnecting the connector (A).
[LH]

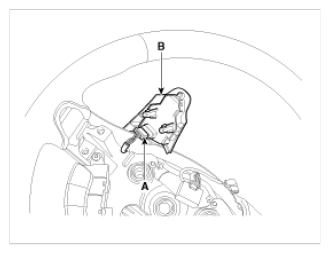

Fig 4: Identifying Upper Steering Wheel Control Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

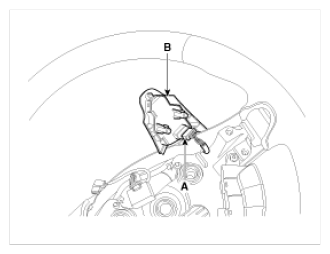

Fig 5: Identifying Upper Steering Wheel Control Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
