Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the center fascia panel (A) from the crash pad.

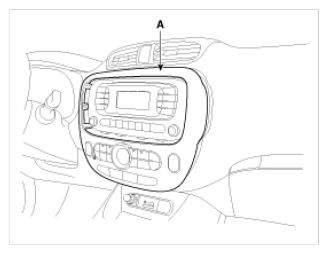

Fig 1: Identifying Center Fascia Panel From Crash Pad
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) from the center fascia panel.

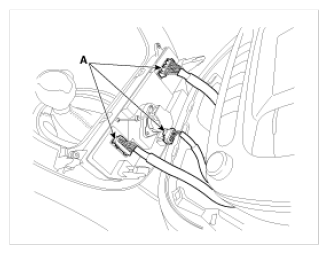

Fig 2: Identifying Connectors From Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio head unit (A) after loosening the mounting screws.

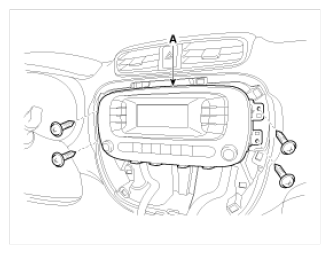

Fig 3: Identifying Audio Head Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors and cable (A) from the audio head unit.

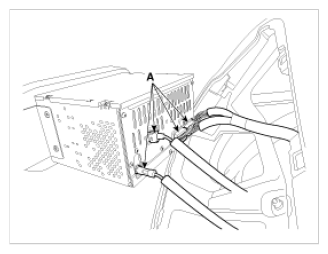

Fig 4: Identifying Audio Head Unit Cable Connectors
Courtesy of KIA MOTORS AMERICA, INC.
