Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the multimedia jack (A).

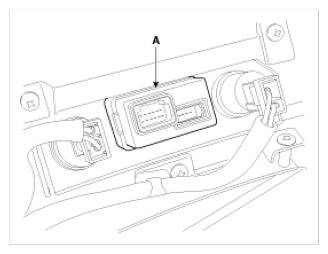

    Fig 1: Identifying Multimedia Jack (1 Of 2)
    G09782364Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Multimedia Jack (2 Of 2)
    G09782365Courtesy of KIA MOTORS AMERICA, INC.
