Neutralizing Of SMARTRA

The EMS can be set to the status "neutral" by tester

Ignition key (regardless of key status) is inserted and after IGN ON. If receiving the correct vehicle password from GST, SMARTRA can be neutralized. The neutralization of SMARTRA is possible if DPN is same as the value inputted by GST.

In case that the SMARTRA status is neutral, the EMS keeps the lock state. And the start is not possible by "twice ignition".

In case of changing the vehicle password, new virgin transponder must be only used. And in case of virgin key, after Learning the key of vehicle password, it can be used.

If wrong vehicle specific data have been sent to SMATRA three times continuously or intermittently, the SMATRA will reject the request to enter neutral mode for one hour. Disconnecting the battery or other manipulation cannot reduce this time. After connecting the battery the timer starts again for one hour.

NOTE:
  • Neutralizing Setting condition:
    • In case of "SMARTRA status", "Learned"
    • Input correct Pin code by tester
  • Neutralizing meaning:
    • Vehicle password (DPN Code) & SEK Code deletion.
    • Permission of New DPN Learning.
Fig 1: SMARTRA Status Chart
G09778236Courtesy of KIA MOTORS AMERICA, INC.

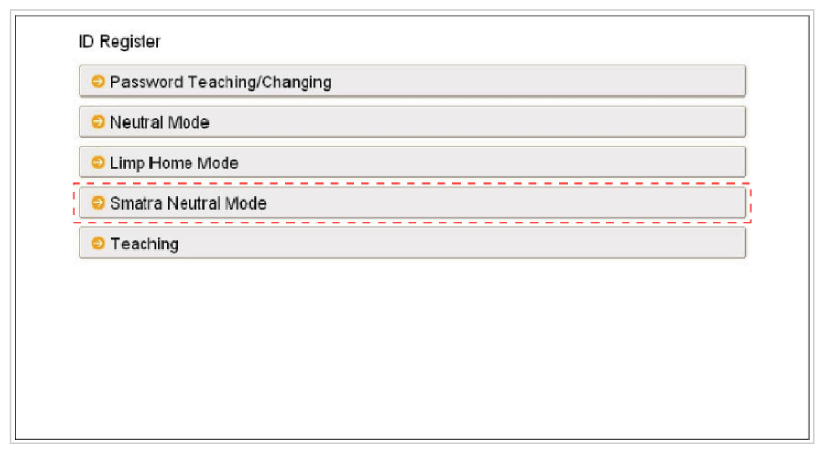

Fig 2: Smartra Neutral Mode Screen
G09778237Courtesy of KIA MOTORS AMERICA, INC.

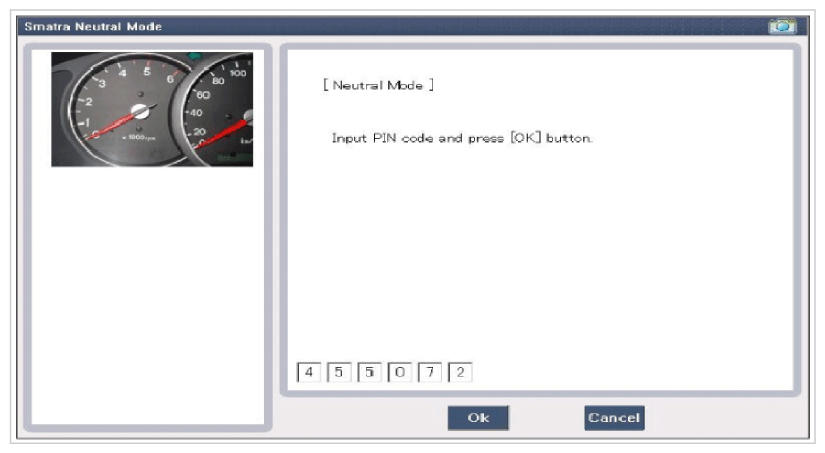

Fig 3: Pin Code And Ok Button Screen
G09778238Courtesy of KIA MOTORS AMERICA, INC.

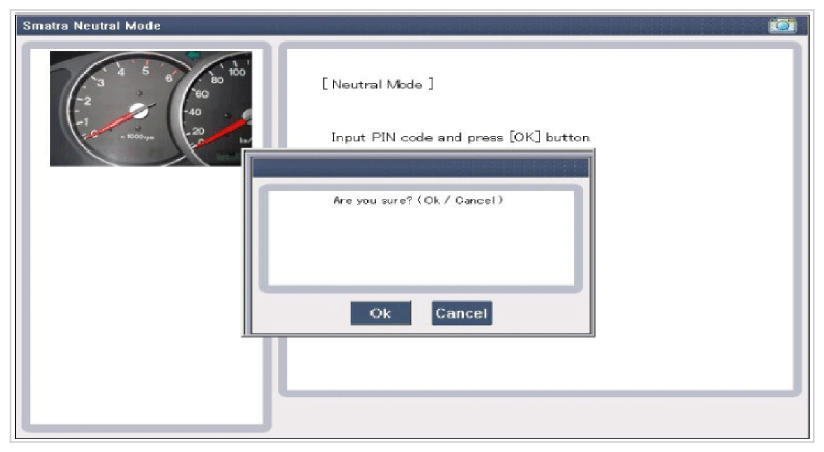

Fig 4: Pin Code And Ok/Cancel Confirmation Button Screen
G09778239Courtesy of KIA MOTORS AMERICA, INC.

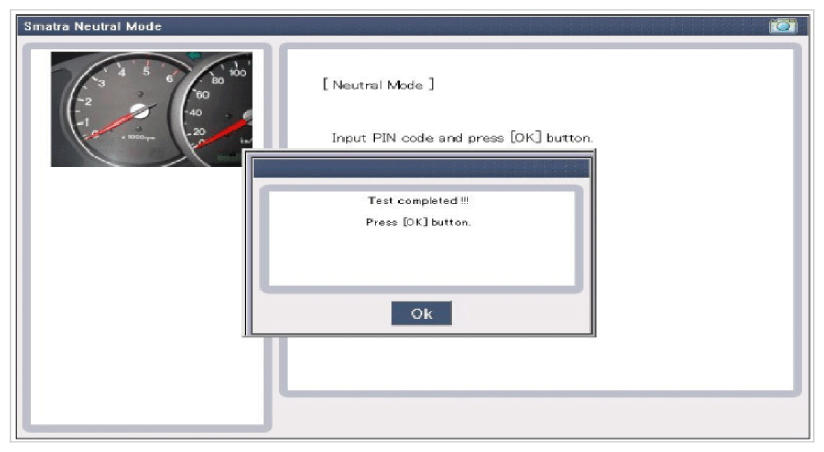

Fig 5: Test Completed Screen
G09778240Courtesy of KIA MOTORS AMERICA, INC.
Fig 6: IG Off Screen (After 10 Second)
G09778234Courtesy of KIA MOTORS AMERICA, INC.

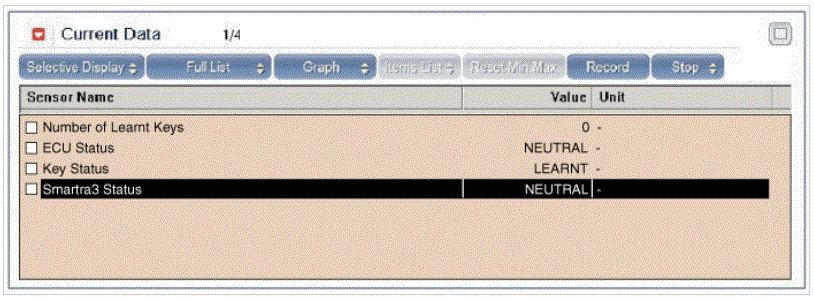

Fig 7: Smartra Status Screen
G00552475Courtesy of KIA MOTORS AMERICA, INC.
