Components And Components Location
›
Components
›
Driver Power Window Switch
Driver Power Window Switch

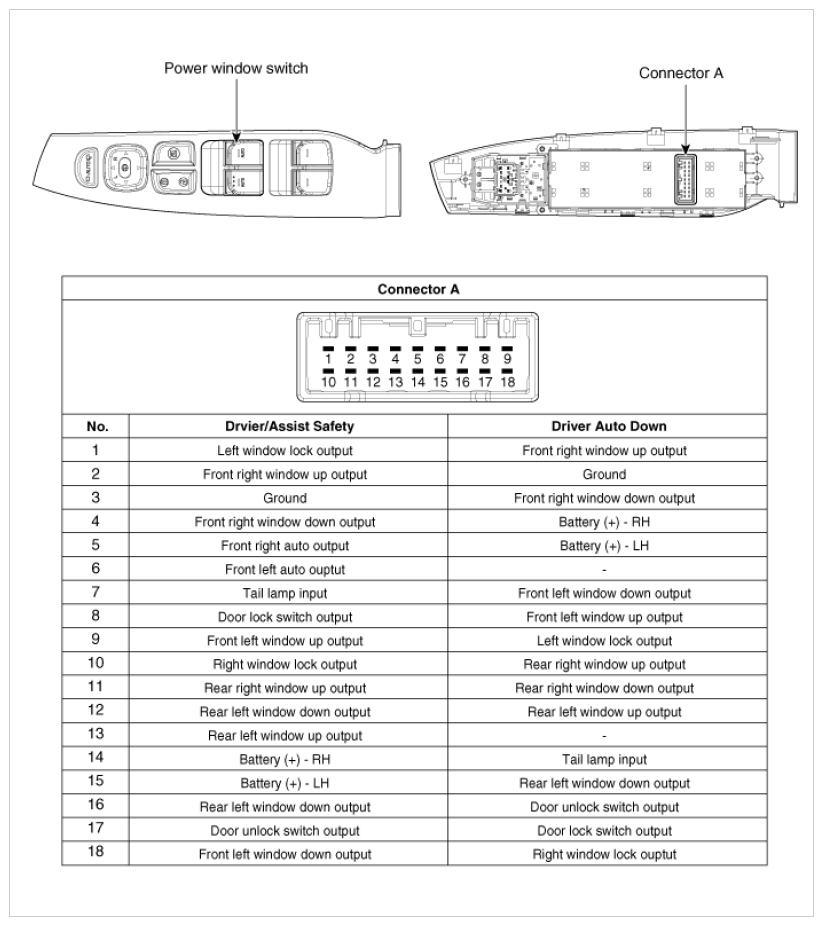

Fig 1: Driver Power Window Switch Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
