Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Remove the lower crash pad switch assembly (A) by pushing it.

Fig 1: Identifying Lower Crash Pad Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

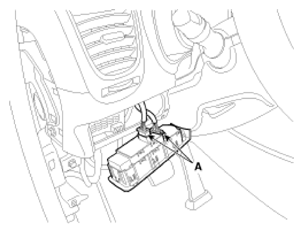

Disconnect the connectors (A) from the lower crash pad switch assembly.

Fig 2: Identifying Connectors From Lower Crash Pad Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity between the switch terminals as the ESC OFF switch is engaged.

Fig 3: ESC Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
