Component Location

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

[Without Heat Pump]

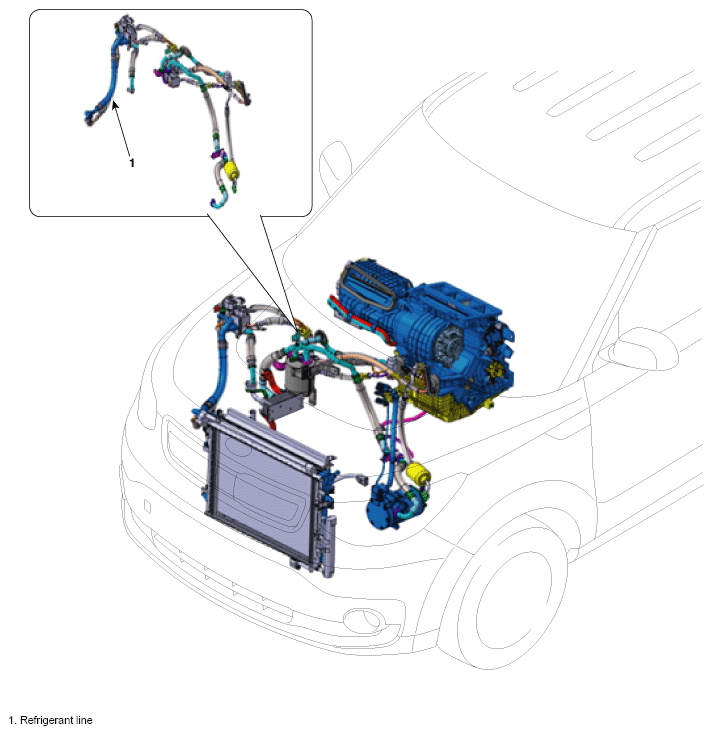

Fig 1: Refrigerant Line (Without Heat Pump)

Courtesy of KIA MOTORS AMERICA, INC.

[With Heat Pump]

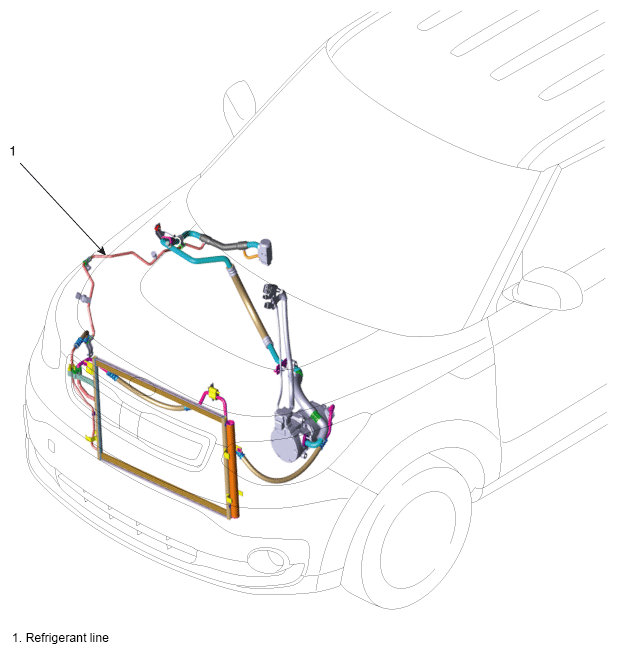

Fig 2: Refrigerant Line (With Heat Pump)

Courtesy of KIA MOTORS AMERICA, INC.
