Components And Components Location: Components

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

[LH]

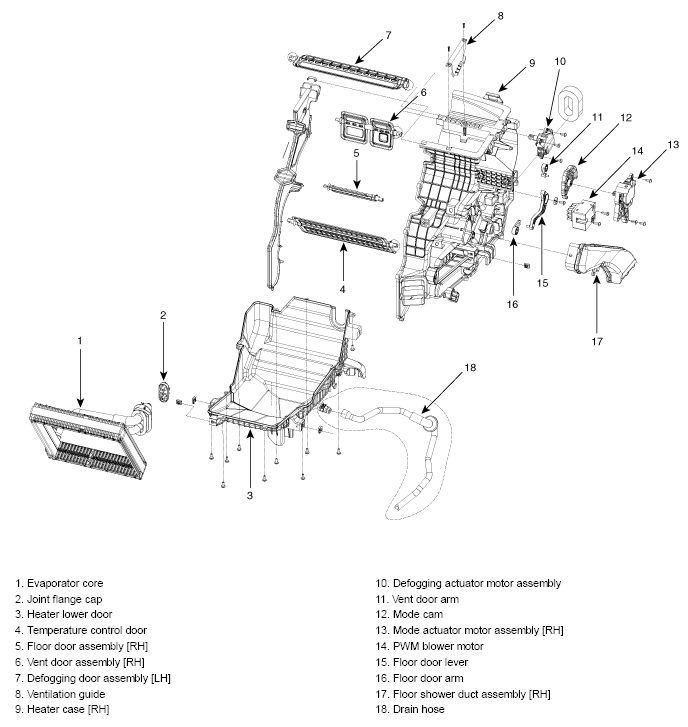

Fig 1: Heater Unit Related Components (LH)

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 2: Heater Unit Related Components (RH)

Courtesy of KIA MOTORS AMERICA, INC.
