Coolant Refilling And Bleeding

CAUTION: Never remove the reservoir cap when the high voltage system and electric device radiator are hot. Serious burns may be caused when hot fluid under high pressure escapes from the reservoir.

NOTE: When pouring electric device coolant, be sure to shut the relay box lid and not to let coolant spill on the electrical parts or the paint. If any coolant spills, rinse it off immediately.

Make sure the electric device system and electric device radiator are cool to the touch.
Remove reservoir cap (A).

Fig 1: Reservoir Cap
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to UNDER COVER REMOVAL
Loosen the drain plug (A) and drain the coolant.

Fig 2: Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the radiator drain plug securely.
After draining engine coolant in the reservoir tank, clean the tank.
Fill the reservoir with water through the reservoir cap and tighten the cap.
NOTE: To most effectively bleed the air, pour the water slowly and press on the upper/lower radiator hoses.

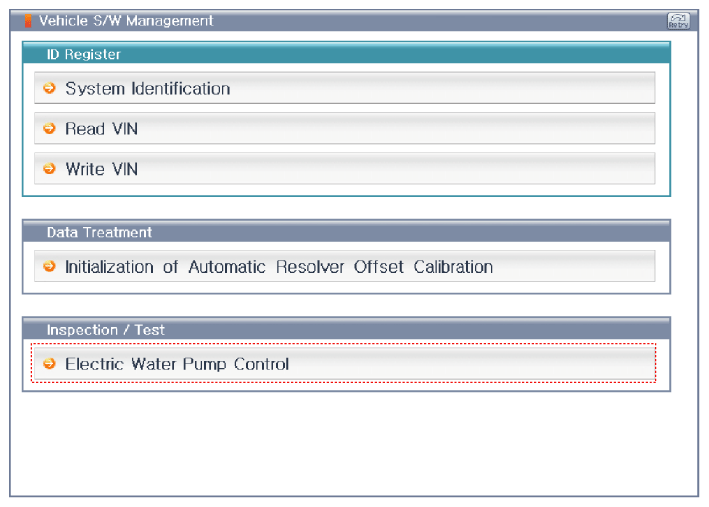

Connect a GDS and then operate the Electric Water Pump (EWP).

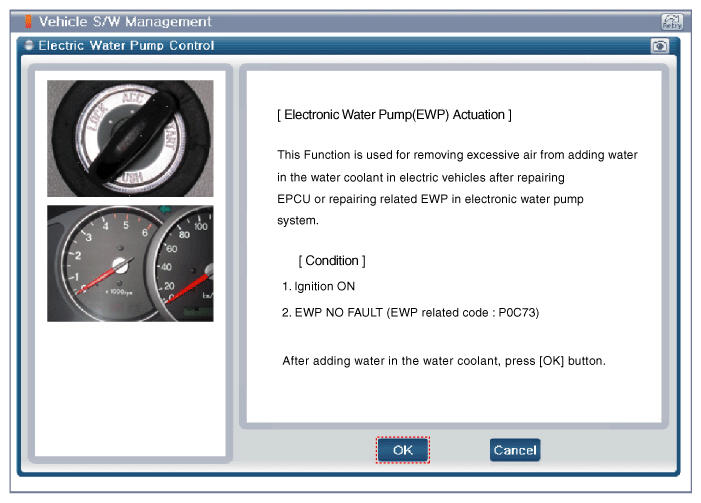

Fig 3: Screen Display - Electric Water Pump Control (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Electric Water Pump Control (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

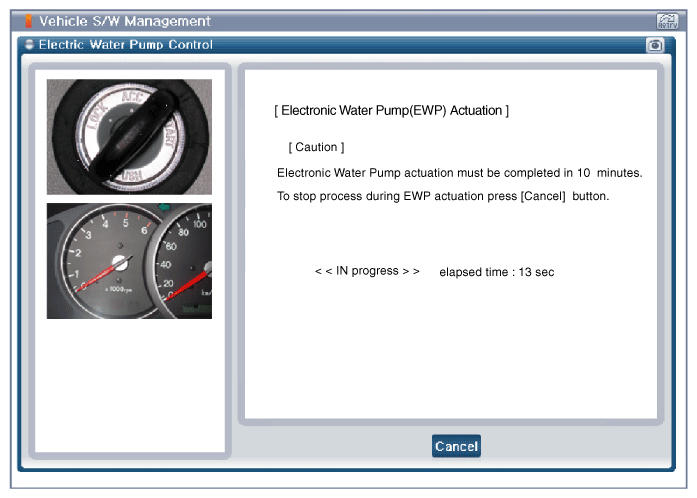

Fig 5: Screen Display - Electric Water Pump Control (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

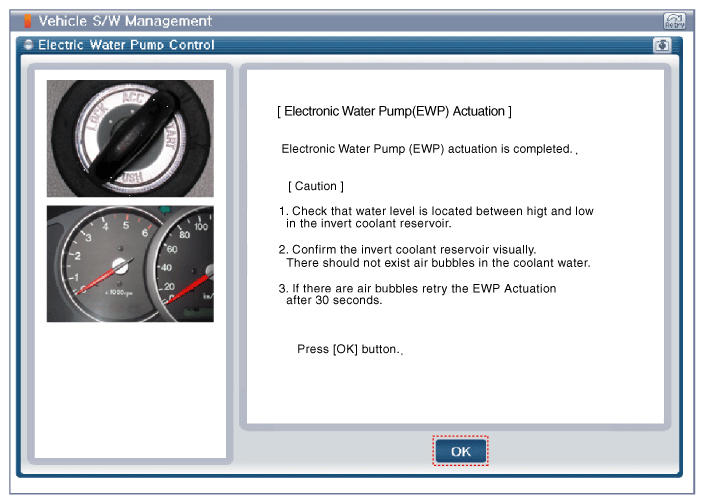

Fig 6: Screen Display - Electric Water Pump Control (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Repeat steps 1 to 8 until the drained water runs clear.
Fill fluid mixture of coolant and water (50%) slowly through the reservoir cap. Push the coolant hoses of the radiator so as to bleed air easily.
NOTE:
- Use only genuine antifreeze/coolant.
- For best corrosion protection, the coolant concentration must be maintained year-round at 55% minimum. Coolant concentrations less than 55% may not provide sufficient protection against corrosion or freezing.
- For best corrosion protection, the coolant concentration must be maintained year-round at 55% minimum. Coolant concentrations less than 55% may not provide
- sufficient protection against corrosion or freezing.
- Do not mix different brands of antifreeze/coolants.
- Do not use additional rust inhibitors or antirust products; they may not be compatible with the coolant.
Connect a GDS and then operate the Electric Water Pump (EWP).

Fig 7: Screen Display - Electric Water Pump Control (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Screen Display - Electric Water Pump Control (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Screen Display - Electric Water Pump Control (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Screen Display - Electric Water Pump Control (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
When the Electric Water Pump (EWP) operates and electric device coolant circulates, refill electric device coolant through the coolant filling bottle.
Bleeding of the electric device cooling system is completed when the operational sound volume of the Electric Water Pump (EWP) gets lower and when no air bubbles can be seen in the coolant filling bottle.
NOTE: After air bleeding is completed, make sure that electric device coolant in the coolant filling bottle flows without air bubbles during the EWP actuation. If the electric device coolant does not flow or if air bubbles are still visible, repeat steps 10 to 13.
After air bleeding is completed, stop the Electric Water Pump (EWP), add electric device coolant to the "F" level on the electric device reservoir and install the electric device reservoir cap and the electric device reservoir cap.
Information

It takes time to bleed out all the air in the cooling system. Refill coolant when coolant gets cool completely, and then recheck the coolant level in the reservoir tank 2 - 3 days after replacing coolant.

Coolant capacity

Without Heat Pump: Approx. 4.1 ~ 4.2 L (1.08 ~ 1.11 U.S.gal., 4.33 ~ 4.44 U.S.qt., 3.61 ~ 3.70 lmp.qt)

With Heat Pump: Approx. 4.6 ~ 4.7 L (1.22 ~ 1.24 U.S.gal., 4.86 ~ 4.97 U.S.qt., 4.05 ~ 4.14 lmp.qt)
