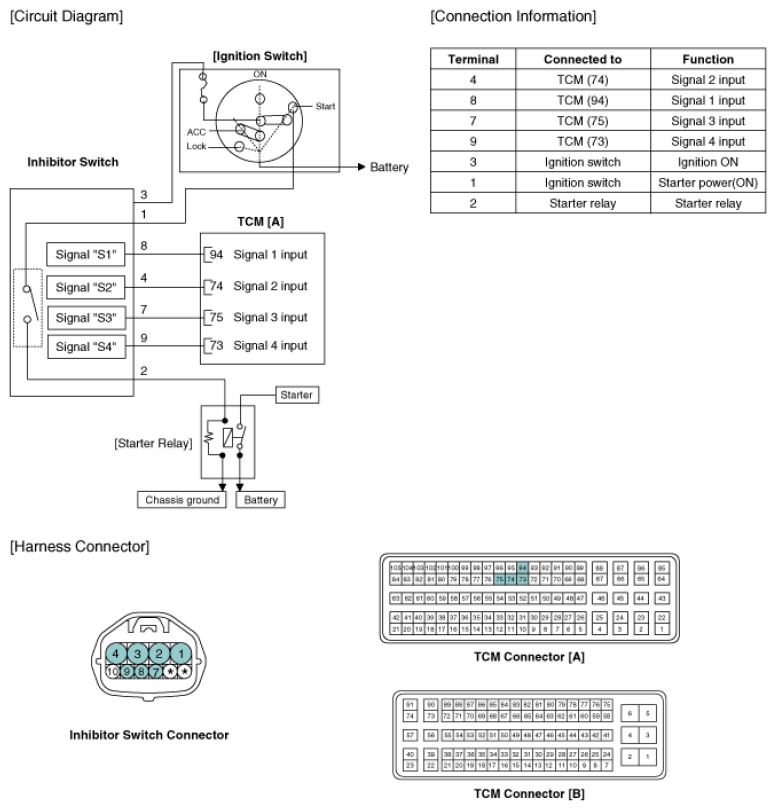

Home › Kia › 2015 › Soul Base, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 1.6L › Inhibitor Switch › Schematic Diagrams › Circuit Diagram
