Components And Components Location: Components

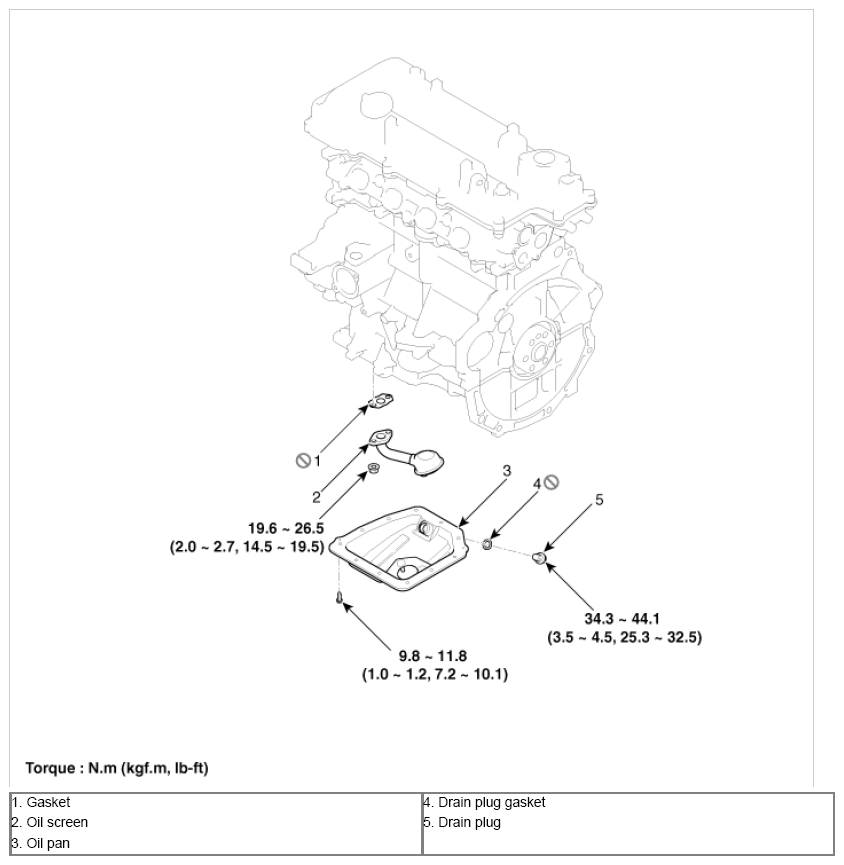

Fig 1: Oil Pan Components With Torque Specifications
G09777641Courtesy of KIA MOTORS AMERICA, INC.
