Component Inspection

  1. Remove the clutch & ignition lock switch.

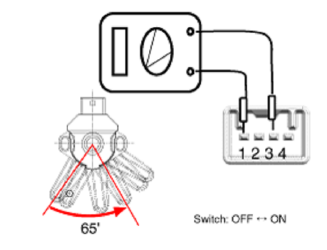

  2. Rotate the Ignition lock switch lever to the direction of the arrow to check the continuity.
    Fig 1: Checking Ignition Lock Switch Continuity
    G09773137Courtesy of KIA MOTORS AMERICA, INC.
    Clutch pedal position Ignition lock switch
    Released Open
    Fully pressed Continuity
    Fig 2: Ignition Lock Switch Circuit Diagram & Connector Terminal Identification
    G09773138Courtesy of KIA MOTORS AMERICA, INC.
