Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the ignition lock switch connector (A).
  3. Remove the ignition lock and clutch switch (B).

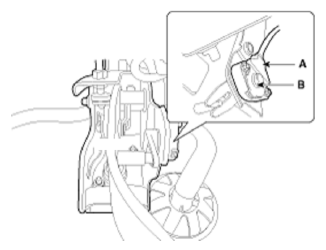

    Fig 1: Ignition Lock & Clutch Switch Connectors
    G09773139Courtesy of KIA MOTORS AMERICA, INC.
