FOB Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "FOB KEY STATUS INFORMATION".

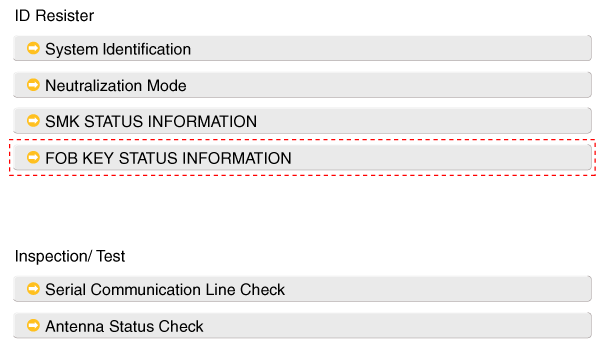

Fig 1: Screen Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.

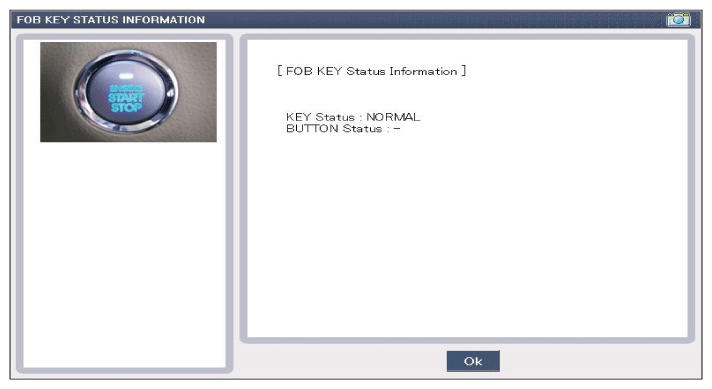

Fig 2: Screen Display - FOB Key Status Information
Courtesy of KIA MOTORS AMERICA, INC.
