Smart Key Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "SMK STATUS INFORMATION".

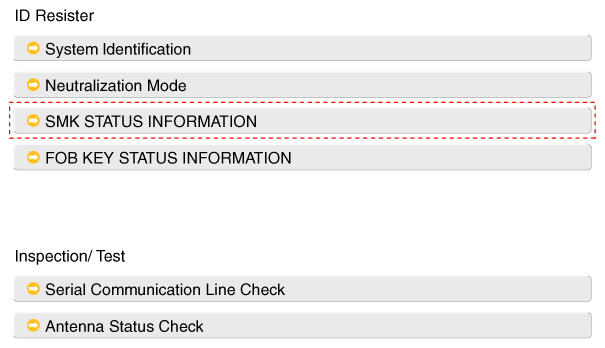

Fig 1: Screen Display - ID Register

Courtesy of KIA MOTORS AMERICA, INC.

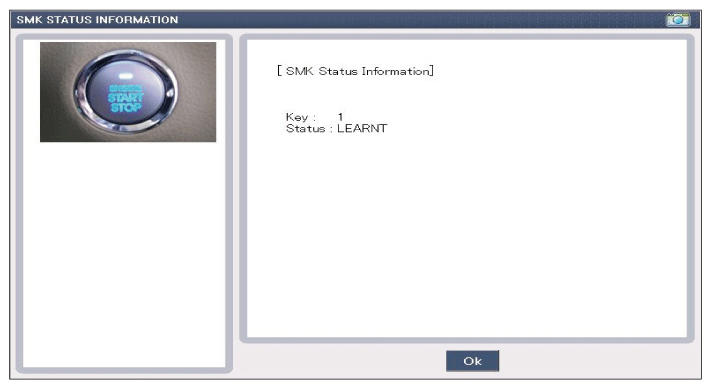

Fig 2: Screen Display - SMK Status Information

Courtesy of KIA MOTORS AMERICA, INC.
