Circuit diagram

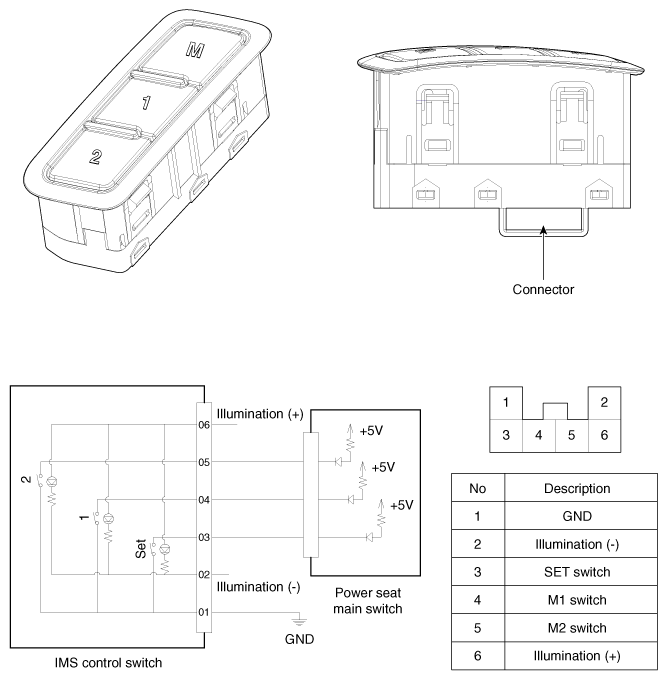

Fig 1: Locating IMS Control Switch Connector Terminals
G11785907Courtesy of KIA MOTORS AMERICA, INC.
