Driver Power Seat Control Switch (For IMS)
Driver Power Seat Control Switch (For IMS)

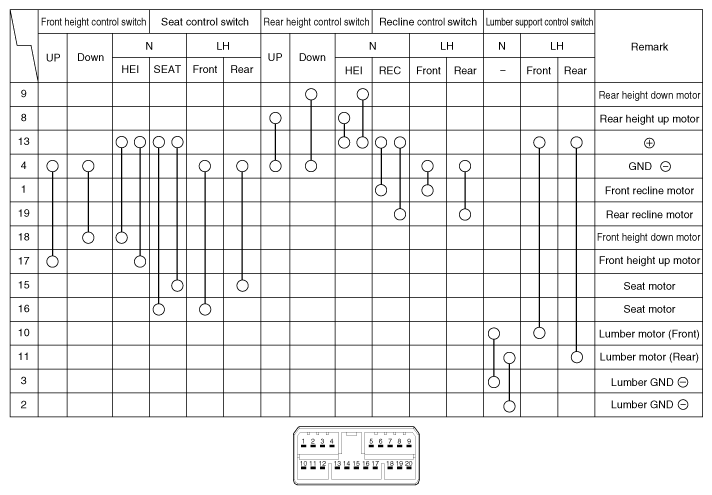

Fig 1: Driver Power Seat Control Switch Connector Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
