Neutralizing Of ECM

The PCM(ECM) can be set to the "neutral" status by a tester.

A valid ignition key is inserted and after ignition on is recorded, the PCM(ECM) requests the vehicle specific data from the tester. The communication messages are described at "Neutral Mode" After successfully receiving the data, the PCM(ECM) is neutralized.

The ECM remains locked. Neither the limp home mode nor the "twice ignition on" function, is accepted by the PCM(ECM).

The teaching of keys follows the procedure described for the virgin PCM(ECM). The vehicle specific data have to be unchanged due to the unique programming of the transponder. If data should be changed, new keys with a virgin transponder are requested.

This function is for neutralizing the PCM(ECM) and Key. Ex) when lost key, Neutralize the PCM(ECM) then teach keys.

The PCM(ECM) can be set to the "neutral" status by a scanner. If wrong vehicle specific data have been sent to SMARTRA three times continuously or intermittently, the SMARTRA will reject the request to enter neutral mode for one hour. Disconnecting the battery or other manipulation cannot reduce this time. After connecting the battery the timer starts again for one hour.

NOTE:
  • Neutralizing setting condition
    • In case of PCM (ECM) status "Learnt" regardless of user password "Virgin or Learnt"
    • Input correct PIN code by scanner.
    • Neutralizing meaning.

      : PIN code (6) & user password (4) deletion.

      : Locking of ECM (except key teaching permission)

  • Neutralizing meaning:
    • PIN Code(6) & User P/Word(4) deletion
    • Locking of EMS(except Key Learning permission)
Fig 1: ECM Neutralizing Condition Chart
G11786339Courtesy of KIA MOTORS AMERICA, INC.

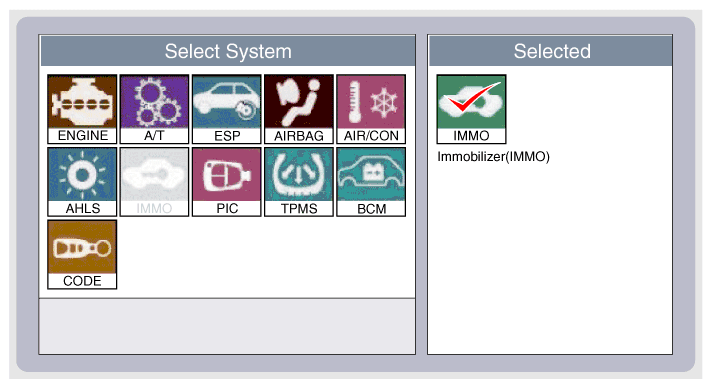

Fig 2: Scantool Display - Immobilizer Selection
G11786340Courtesy of KIA MOTORS AMERICA, INC.

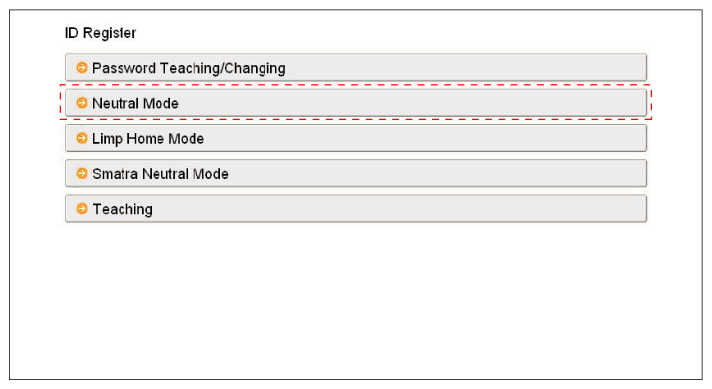

Fig 3: Scantool Display - ID Register (Neutral Mode)
G11786341Courtesy of KIA MOTORS AMERICA, INC.

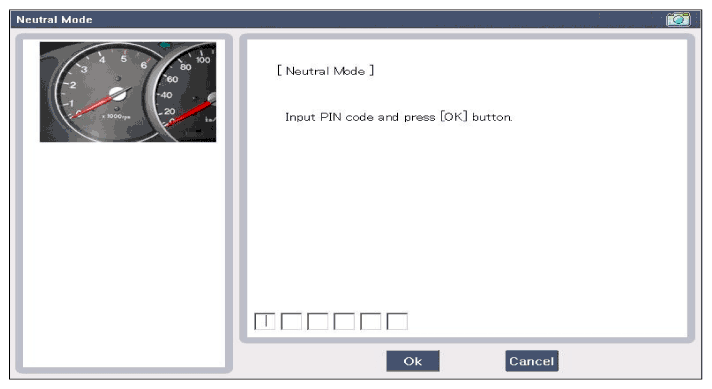

Fig 4: Scantool Display - ID Register Neutral Mode (Without Pin Code)
G11786342Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: Scantool Display - ID Register Neutral Mode Screen (With Pin Code)
G11786343Courtesy of KIA MOTORS AMERICA, INC.
Fig 6: Scantool Display - ID Register Neutral Mode Confirmation Message
G11786344Courtesy of KIA MOTORS AMERICA, INC.
Fig 7: Scantool Display - ID Register Neutral Mode Completed Message
G11786345Courtesy of KIA MOTORS AMERICA, INC.
Fig 8: Scantool Display - ID Register Neutral Mode (IG Off Timing)
G11786346Courtesy of KIA MOTORS AMERICA, INC.

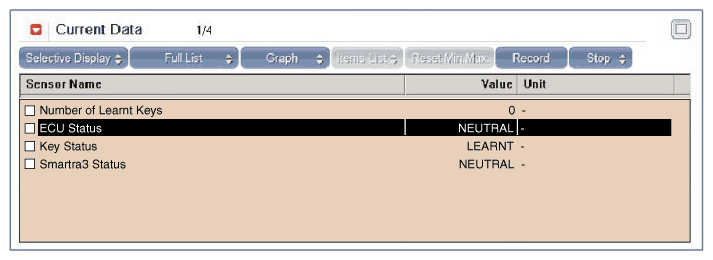

Fig 9: Scantool Display - Current Data
G11786347Courtesy of KIA MOTORS AMERICA, INC.
