Trunk lid open switch

  1. Disconnect the negative(-) battery terminal.
  2. Remove the trunk door trim.

    (Refer to Body - "TRUNK TRIM - REPLACEMENT ")

  3. Disconnect the trunk lid open switch connector (A).
    Fig 1: Disconnecting Trunk Lid Open Switch Connector
    G11785580Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the outside handle (A) after releasing the fixed hooks.

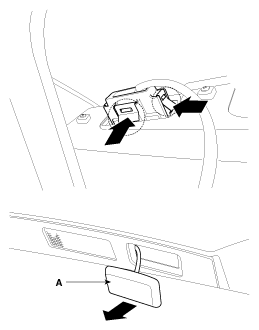

Fig 2: Releasing Outside Handle Fixed Hooks
G11785581Courtesy of KIA MOTORS AMERICA, INC.
