Driver Power Window Switch

When checking the driver power window switch, select a vehicle type and "IPM" menu.
Select "DDM (Driver Door Module)".
Select option "Input/Output monitoring".

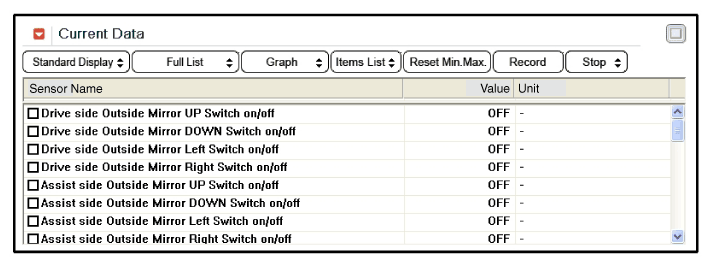

Fig 1: Screen Display - Driver Power Window Switch Current Data
Courtesy of KIA MOTORS AMERICA, INC.
To check the input value of power window switch in force mode, select option "ACTUATION TEST".

Fig 2: Screen Display - Driver Power Window Switch Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.
