Schematic Diagrams
›
Circuit Diagram
›
Driver Power Window Switch (1)
Driver Power Window Switch (1)

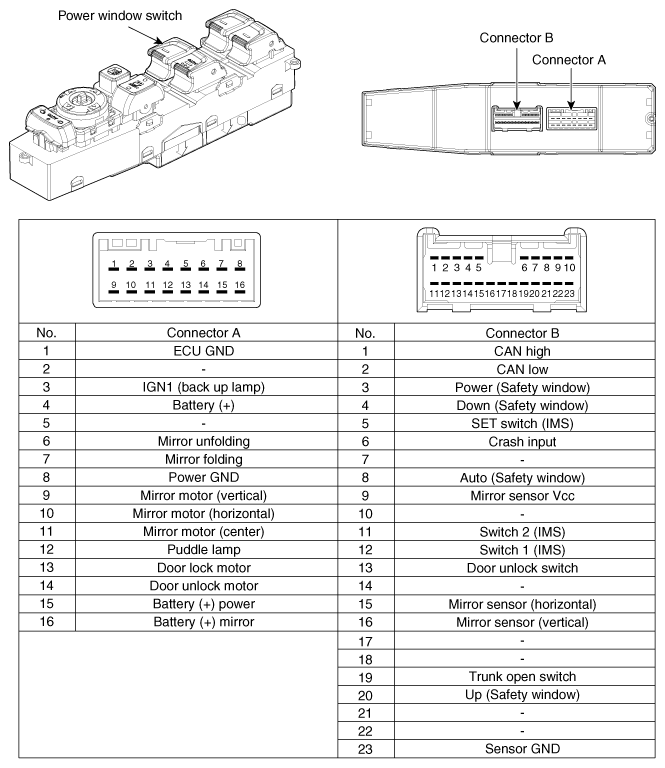

Fig 1: Driver Power Window Switch Connector Terminals Description Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
