Components and Components Location: Components

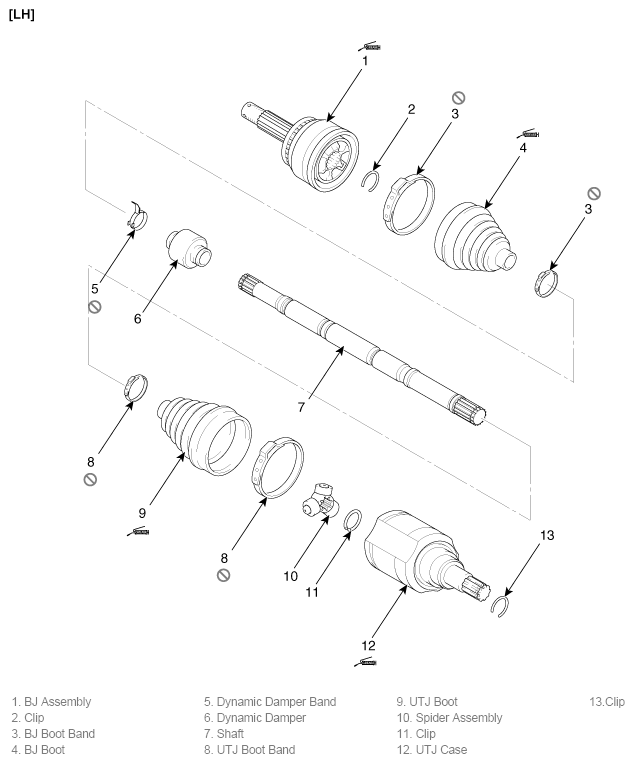

Fig 1: Exploded View Of Front Driveshaft (LH)

Courtesy of KIA MOTORS AMERICA, INC.

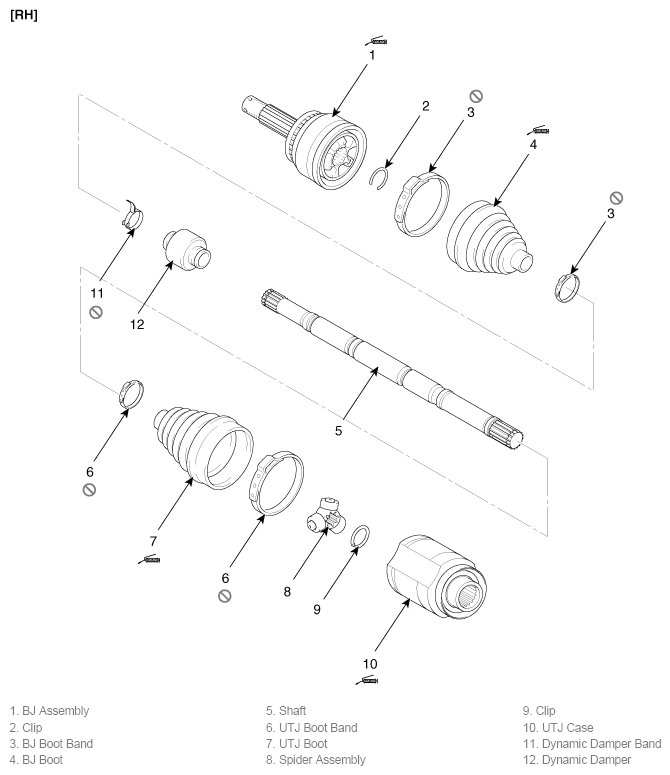

Fig 2: Exploded View Of Front Driveshaft (RH)

Courtesy of KIA MOTORS AMERICA, INC.
