Home › Kia › 2016 › Cadenza Base › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components and Components Location › Component

Components and Components Location: Component

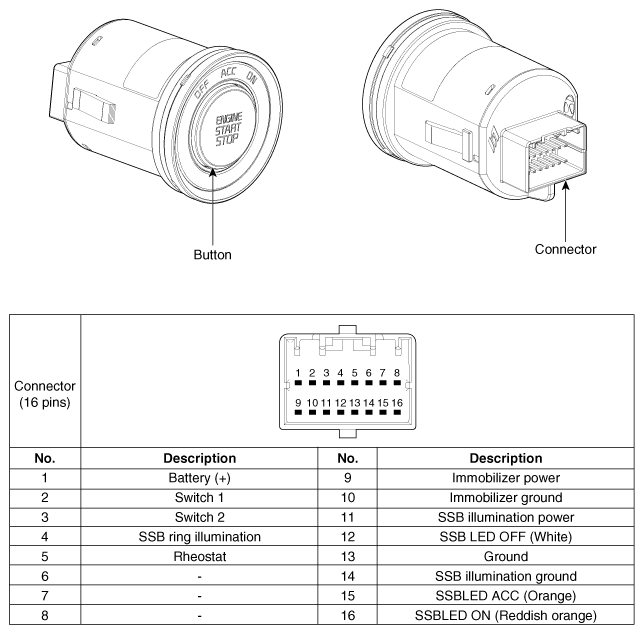

Fig 1: Start/Stop Button Connector Terminals
G11786382Courtesy of KIA MOTORS AMERICA, INC.
