Components and Components Location: Components

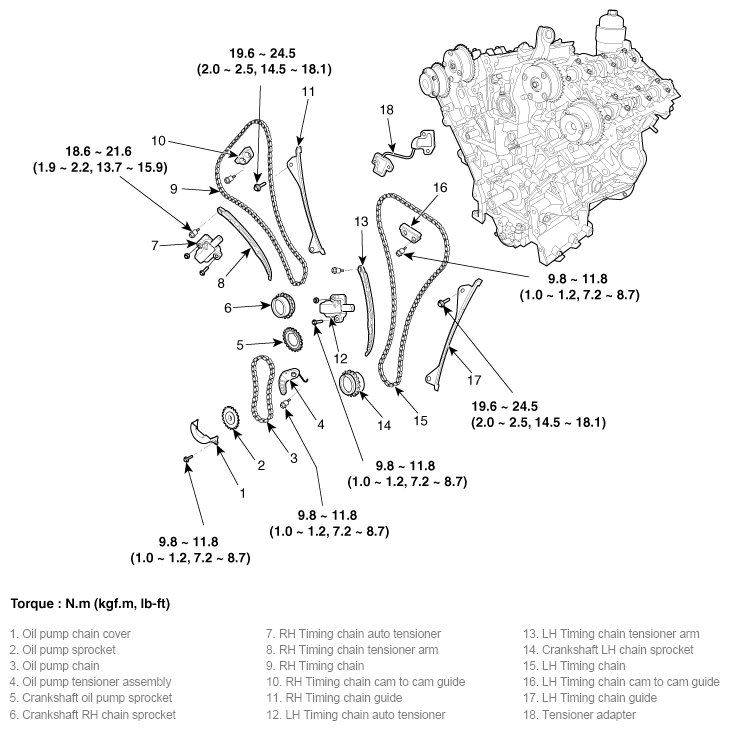

Fig 1: Timing Chain Components With Torque Specification
G11783458Courtesy of KIA MOTORS AMERICA, INC.
