Kia
›
2016
›
Cadenza Base
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Components and Components Location
›
Components Location
Components Location

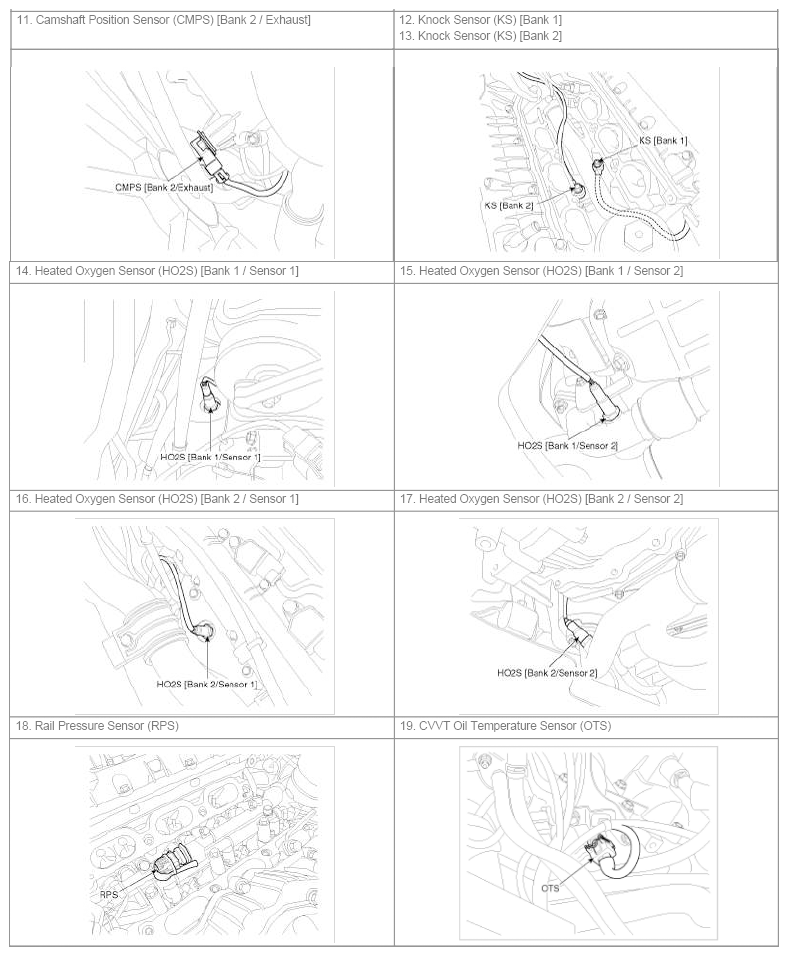

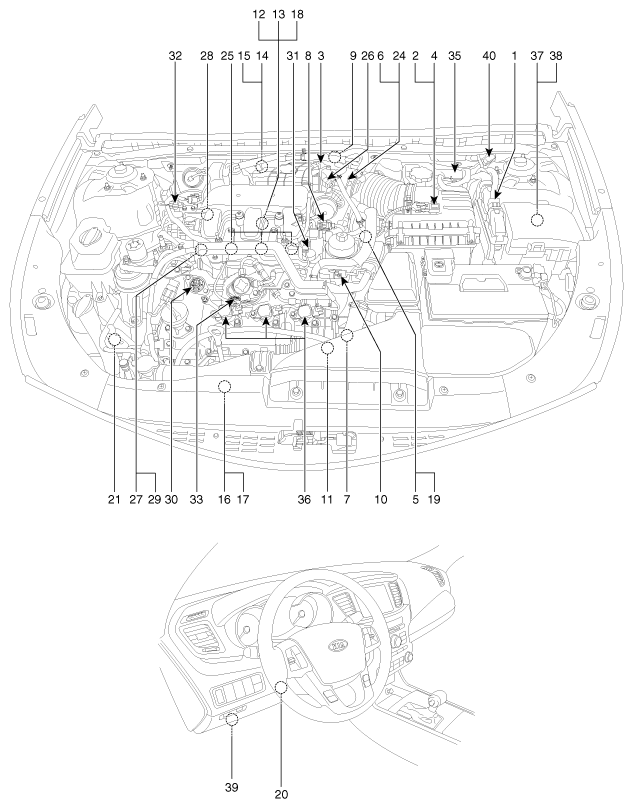

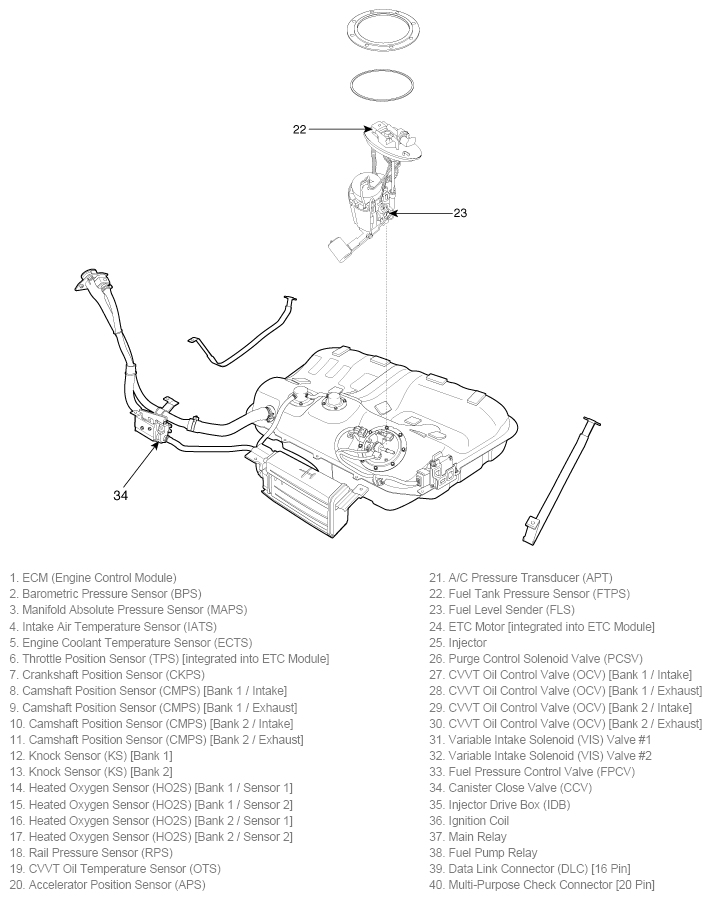

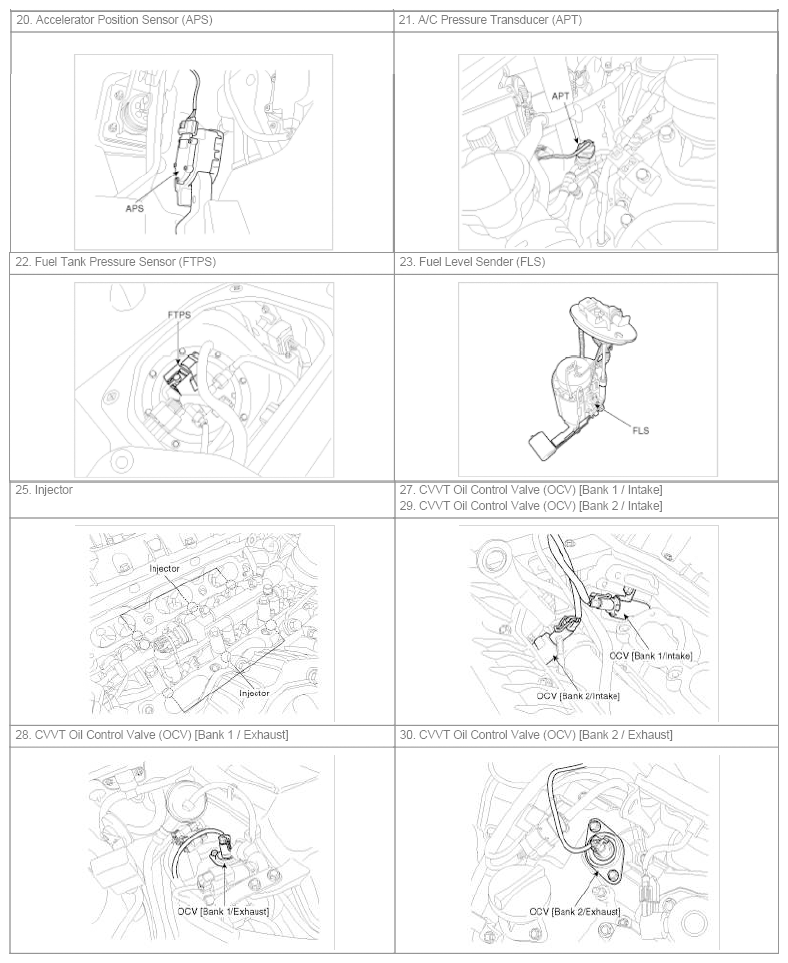

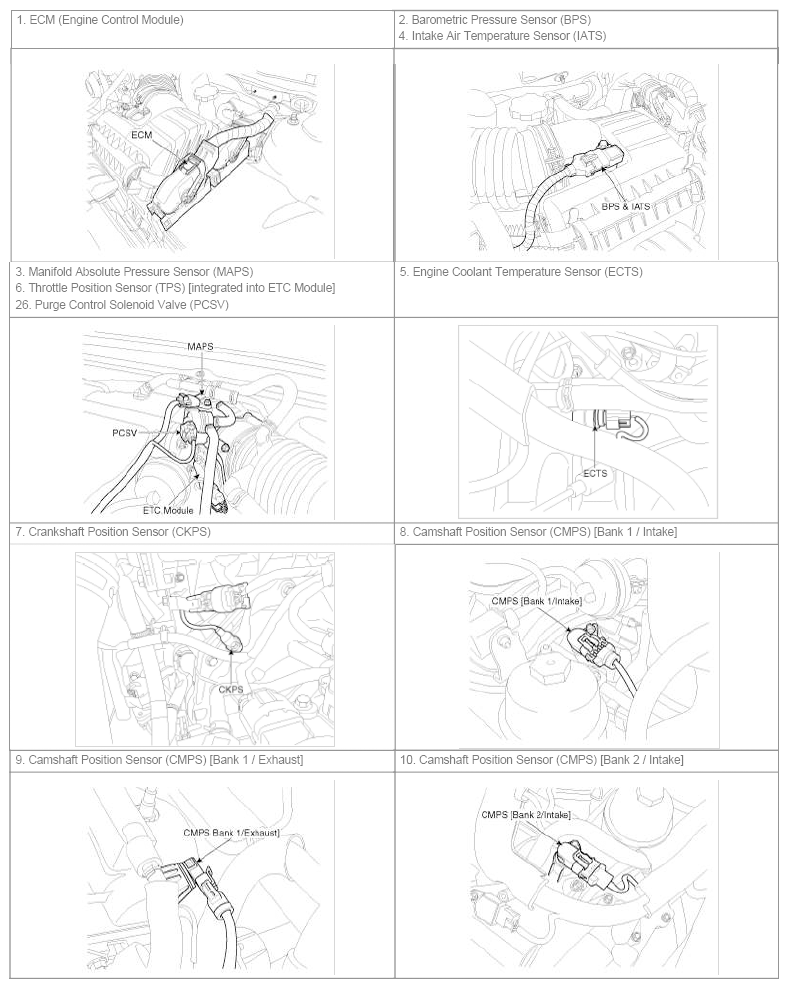

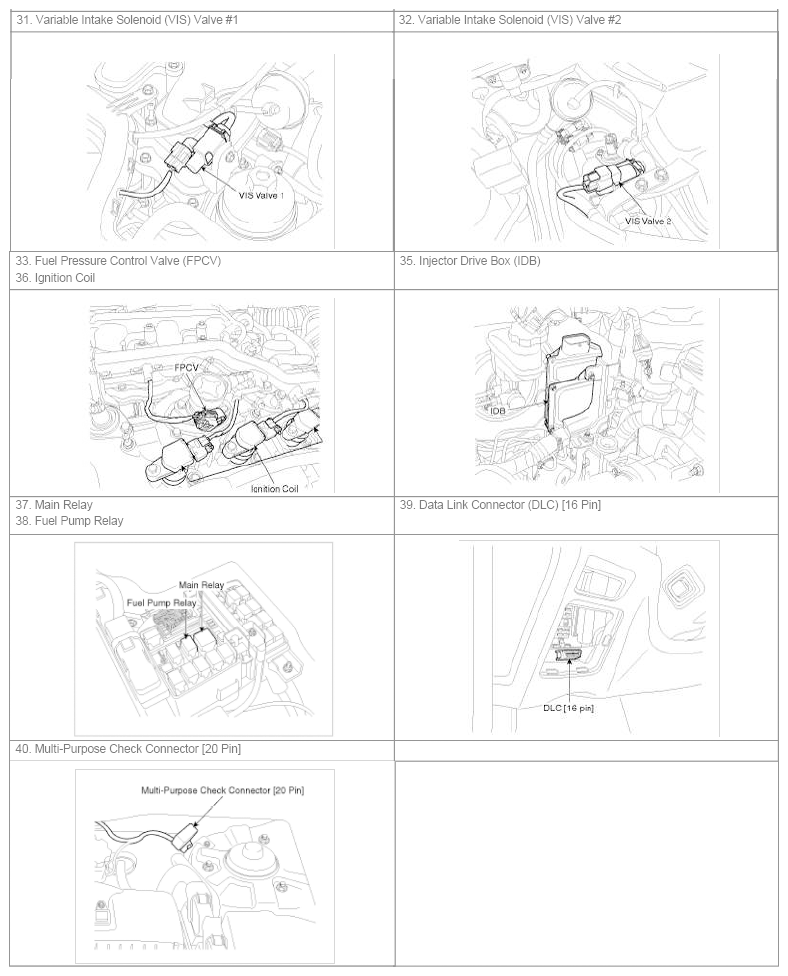

Fig 1: Engine Control/Fuel System Components Location (1 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Engine Control/Fuel System Components Location (2 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Engine Control/Fuel System Components Location (3 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Engine Control/Fuel System Components Location (4 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: Engine Control/Fuel System Components Location (5 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 6: Engine Control/Fuel System Components Location (6 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
