Manifold Absolute Pressure Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

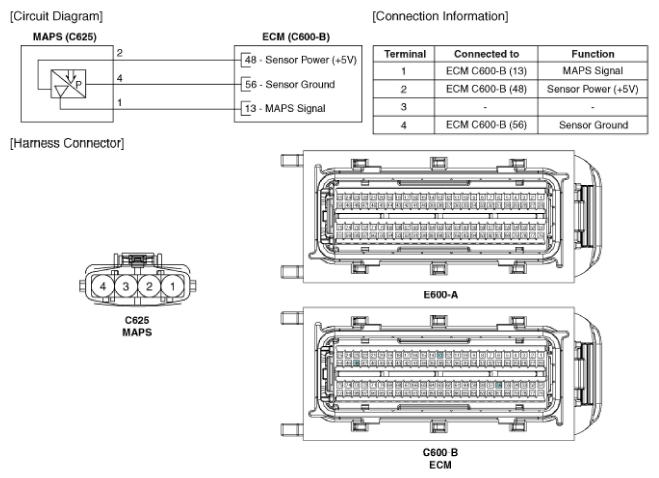

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
