Rail Pressure Sensor (RPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

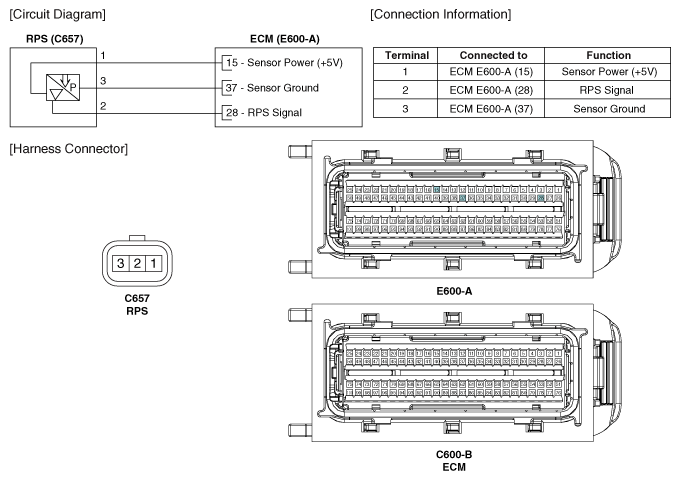

Fig 1: Rail Pressure Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
