Engine Control System Diagnosis (2 Of 3)
›
DTC P0221: Throttle Position Sensor 2 Signal Circuit Range/Performance
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

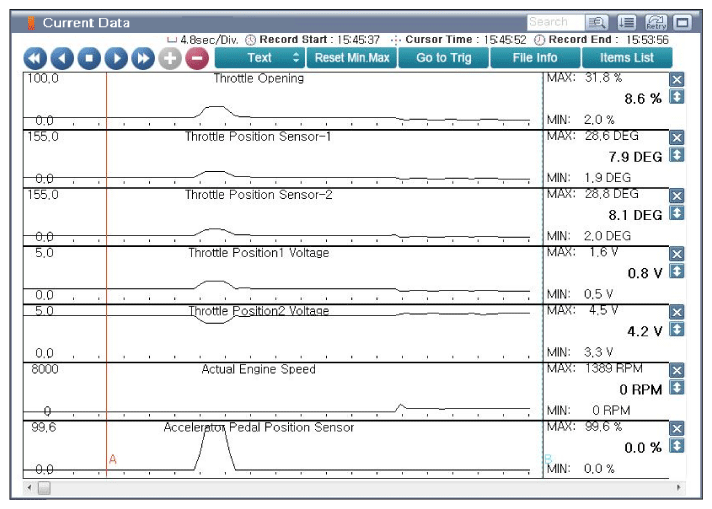

Fig 1: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Not Depressed With IG ON
Courtesy of KIA MOTORS AMERICA, INC.

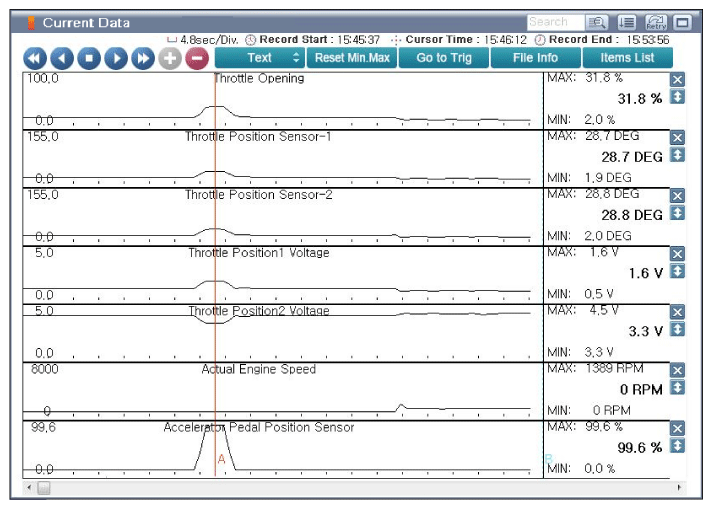

Fig 2: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Depressed With IG ON
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
