Engine Control System Diagnosis (3 Of 3)
›
DTC P0620: Alternator Control Circuit
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

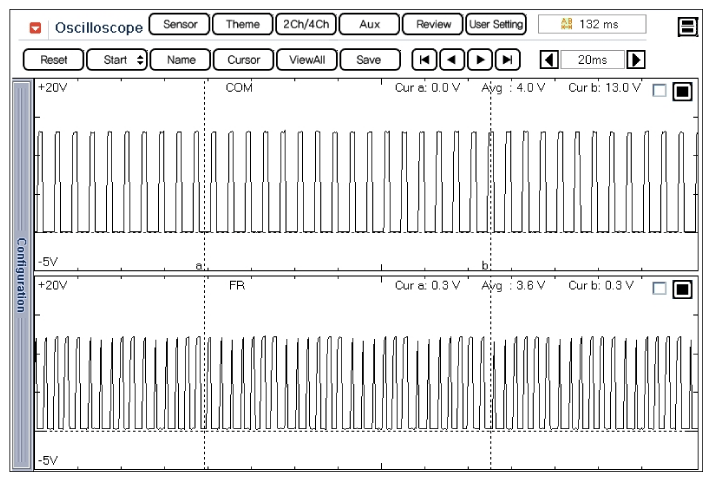

Fig 1: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle
Courtesy of KIA MOTORS AMERICA, INC.

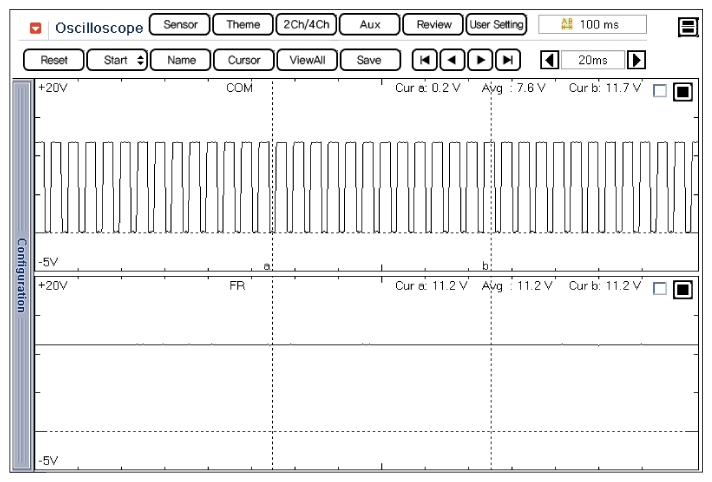

Fig 2: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator With Connector Disconnected Condition At IG ON
Courtesy of KIA MOTORS AMERICA, INC.
