Automatic Transaxle System
›
Components and Components Location
›
Components
Components and Components Location: Components

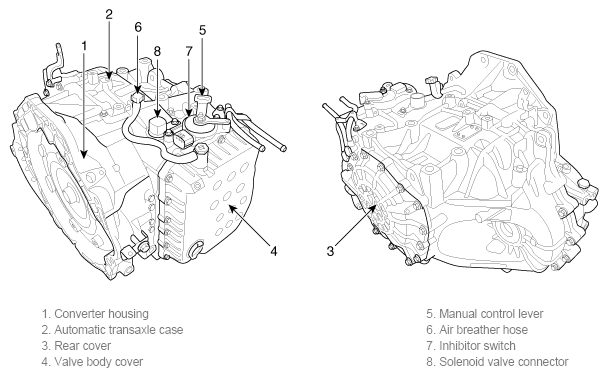

Fig 1: Automatic Transaxle System Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
